Q-0D05G0005084i

Active

Amphenol Custom Cable

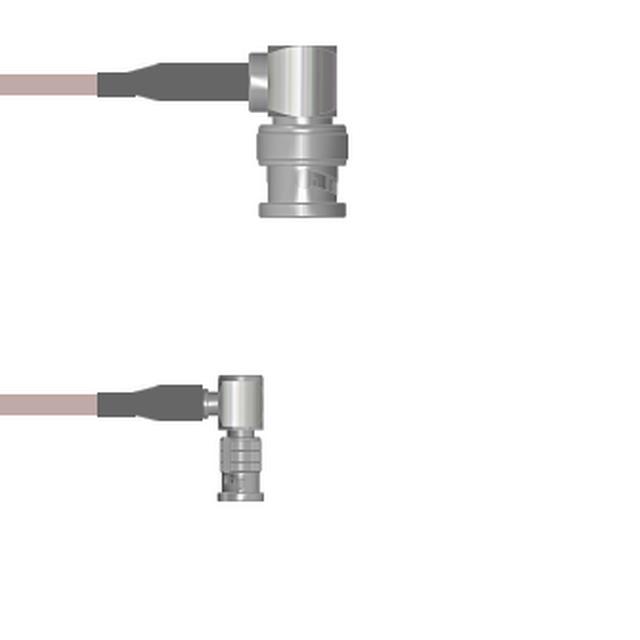

COAX CBL BNC TO HD-BNC 7'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0D05G0005084i

Active

Amphenol Custom Cable

COAX CBL BNC TO HD-BNC 7'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0D05G0005084i

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	HD-BNC Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	84 in
Length	2.1 m
Length	7 ft
Overall Impedance	50 Ohms
Style	BNC to HD-BNC

Q-0D05G0 Series

Part	Features	Style	Cable Type	2nd Connector	Length	Length	1st Contact Gender	Color	Overall Impedance	2nd Connector Mounting Type	1st Connector	2nd Contact Gender	1st Connector Mounting Type	Frequency - Max [Max]	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0D05G00030.5M	Shielded	BNC to HD-BNC	RG-174	HD-BNC Plug Right Angle	50 cm	19.69 "	Male	Black	50 Ohms	Free Hanging (In-Line)	BNC Plug Right Angle	Male	Free Hanging (In-Line)	4 GHz
Amphenol Custom Cable Q-0D05G00051.5M	Shielded	BNC to HD-BNC	RG-316	HD-BNC Plug Right Angle	1.5 m	59.1 in	Male	Copper	50 Ohms	Free Hanging (In-Line)	BNC Plug Right Angle	Male	Free Hanging (In-Line)	4 GHz	4.9 ft
Amphenol Custom Cable Q-0D05G0003.25M	Shielded	BNC to HD-BNC	RG-174	HD-BNC Plug Right Angle			Male	Black	50 Ohms	Free Hanging (In-Line)	BNC Plug Right Angle	Male	Free Hanging (In-Line)	4 GHz		9.843 "	250 mm
Amphenol Custom Cable Q-0D05G0005084i	Shielded	BNC to HD-BNC	RG-316	HD-BNC Plug Right Angle	2.1 m	84 in	Male	Copper	50 Ohms	Free Hanging (In-Line)	BNC Plug Right Angle	Male	Free Hanging (In-Line)	4 GHz	7 ft
Amphenol Custom Cable Q-0D05G0003001M	Shielded	BNC to HD-BNC	RG-174	HD-BNC Plug Right Angle	1 m	39.4 in	Male	Black	50 Ohms	Free Hanging (In-Line)	BNC Plug Right Angle	Male	Free Hanging (In-Line)	4 GHz	3.3 ft
Amphenol Custom Cable Q-0D05G0005006i	Shielded	BNC to HD-BNC	RG-316	HD-BNC Plug Right Angle	152.4 mm	6 in	Male	Copper	50 Ohms	Free Hanging (In-Line)	BNC Plug Right Angle	Male	Free Hanging (In-Line)	4 GHz
Amphenol Custom Cable Q-0D05G0003.75M	Shielded	BNC to HD-BNC	RG-174	HD-BNC Plug Right Angle	750 mm	29.53 "	Male	Black	50 Ohms	Free Hanging (In-Line)	BNC Plug Right Angle	Male	Free Hanging (In-Line)	4 GHz
Amphenol Custom Cable Q-0D05G0003003i	Shielded	BNC to HD-BNC	RG-174	HD-BNC Plug Right Angle	76.2 mm	3 in	Male	Black	50 Ohms	Free Hanging (In-Line)	BNC Plug Right Angle	Male	Free Hanging (In-Line)	4 GHz
Amphenol Custom Cable Q-0D05G0003009i	Shielded	BNC to HD-BNC	RG-174	HD-BNC Plug Right Angle	228.6 mm	9 "	Male	Black	50 Ohms	Free Hanging (In-Line)	BNC Plug Right Angle	Male	Free Hanging (In-Line)	4 GHz
Amphenol Custom Cable Q-0D05G0005.75M	Shielded	BNC to HD-BNC	RG-316	HD-BNC Plug Right Angle	750 mm	29.53 "	Male	Copper	50 Ohms	Free Hanging (In-Line)	BNC Plug Right Angle	Male	Free Hanging (In-Line)	4 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 163.83
		25	$ 160.65
		50	$ 157.48
		100	$ 154.31
		250	$ 151.14

Description

General part information

Q-0D05G0 Series

Cable Assembly Coaxial BNC to HD-BNC RG-316 84.0" (2.1m) 7.0'

Documents

Technical documentation and resources

No documents available
