LCBS-8-20-01

Active

Essentra Access Solutions

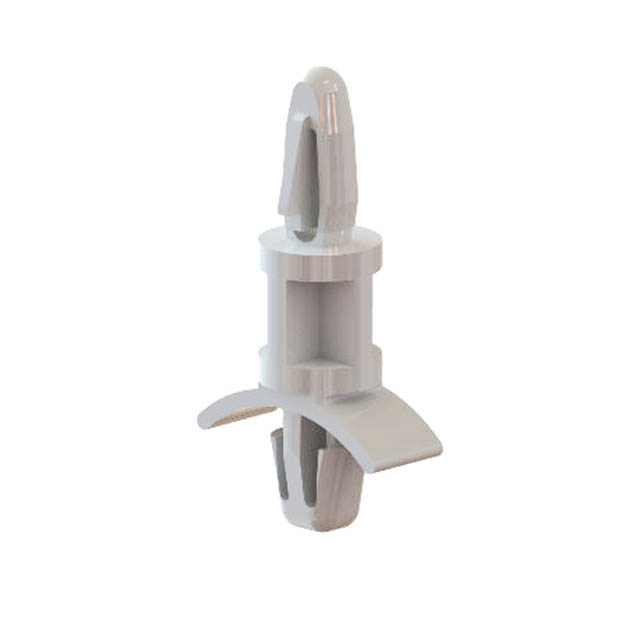

BRD SPT SNAP LOCK NYLON 1 1/4"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LCBS-8-20-01

Active

Essentra Access Solutions

BRD SPT SNAP LOCK NYLON 1 1/4"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LCBS-8-20-01

Between Board Height	31.75 mm
Between Board Height	1.25 in
Between Board Height
Features	Winged
Holding Type	Snap Lock
Length - Overall [x]	49.8 mm
Length - Overall [x]	1.961 in
Material	Nylon
Mounting Hole Diameter [diameter]	0.187 in
Mounting Hole Diameter [diameter]	4.75 mm
Mounting Hole Diameter [diameter]	3 in
Mounting Panel Thickness [Max]	0.055 "
Mounting Panel Thickness [Max]	1.4 mm
Mounting Panel Thickness [Min]	0.2 mm
Mounting Panel Thickness [Min]	0.008 "
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.157 "
Support Hole Diameter [diameter]	3.99 mm
Support Panel Thickness	0.0625 "
Support Panel Thickness	0.062 "
Support Panel Thickness	1.57 mm

LCBS-8 Series

Part	Features	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Between Board Height	Between Board Height	Between Board Height	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Min]	Mounting Type	Material	Holding Type	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Length - Overall [x]	Length - Overall [x]	Between Board Height [z]	Between Board Height [z]	Between Board Height
Essentra Access Solutions LCBS-8-22-01	Winged	0.187 in	4.75 mm	3 in	0.157 "	3.99 mm	34.93 mm		1.375 in	0.2 mm	0.055 "	1.4 mm	0.008 "	Snap Lock	Nylon	Snap Lock	0.0625 "	0.062 "	1.57 mm	53 mm	2.087 in
Essentra Access Solutions LCBS-8-20-01	Winged	0.187 in	4.75 mm	3 in	0.157 "	3.99 mm	31.75 mm		1.25 in	0.2 mm	0.055 "	1.4 mm	0.008 "	Snap Lock	Nylon	Snap Lock	0.0625 "	0.062 "	1.57 mm	49.8 mm	1.961 in
Essentra Access Solutions LCBS-8-8-01	Winged	0.187 in	4.75 mm	3 in	0.157 "	3.99 mm	12.7 mm	0.5 in	0.5 in	0.2 mm	0.055 "	1.4 mm	0.008 "	Snap Lock	Nylon	Snap Lock	0.0625 "	0.062 "	1.57 mm	30.8 mm	1.213 in
Essentra Access Solutions LCBS-8M-01	Winged	0.187 in	4.75 mm	3 in	0.157 "	3.99 mm				0.79 mm	0.078 "	1.98 mm	0.031 in	Snap Lock	Nylon	Snap Lock	0.0625 "	0.062 "	1.57 mm	26.6 mm	1.047 in	0.315 in	8 mm
Essentra Access Solutions LCBS-8-18-01	Winged	0.187 in	4.75 mm	3 in	0.157 "	3.99 mm	28.58 mm		1.125 in	0.2 mm	0.055 "	1.4 mm	0.008 "	Snap Lock	Nylon	Snap Lock	0.0625 "	0.062 "	1.57 mm	46.7 mm	1.839 in			1 1/8
Essentra Access Solutions LCBS-8-6-01	Winged	0.187 in	4.75 mm	3 in	0.157 "	3.99 mm	9.53 mm	0.375 in	0.375 in	0.2 mm	0.055 "	1.4 mm	0.008 "	Snap Lock	Nylon	Snap Lock	0.0625 "	0.062 "	1.57 mm	27.6 mm	1.087 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.37

Description

General part information

LCBS-8 Series

Board Support Snap Lock / Snap Lock Nylon 1.250" (31.75mm) 1 1/4"
