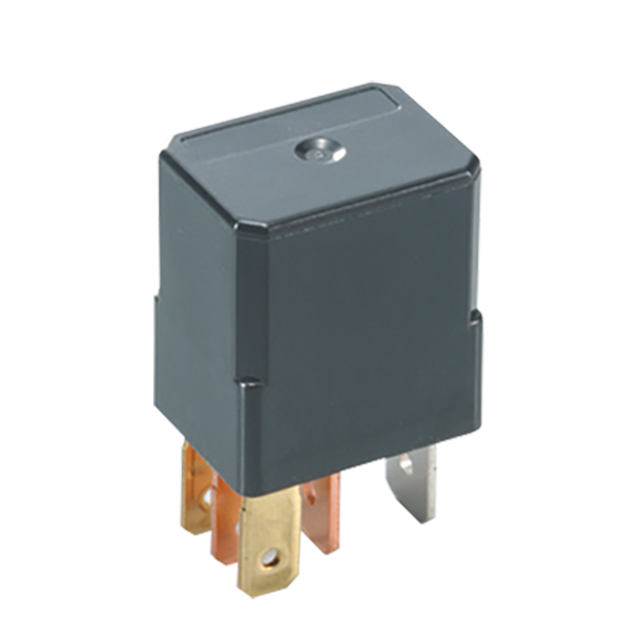

CM1F-24V

Active

Panasonic Electric Works

CM RELAY 1 FORM C 24V

Search across all available documentation for this part.

Active

Panasonic Electric Works

CM RELAY 1 FORM C 24V

Technical Specifications

Parameters and characteristics for this part

Part	Contact Form	Coil Type	Release Time	Coil Current	Mounting Type	Coil Resistance	Contact Material	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Must Release Voltage	Coil Voltage	Termination Style	Features	Switching Voltage	Contact Rating (Current)	Coil Power	Must Operate Voltage
Panasonic Electric Works CM1F-24V	SPDT (1 Form C)	Non Latching	10 ms	75 mA	Socketable	320 Ohms	Cadmium Free Silver Alloy	10 ms	85 °C	-40 °C	2.4 VDC	24 VDC	Plug In	Sealed - Flux Protection	28 VDC	15 A	1.8 W	14 VDC
Panasonic Electric Works CM1F-P-12V	SPDT (1 Form C)	Non Latching	10 ms	125 mA	Through Hole	96 Ohms	Cadmium Free Silver Alloy	10 ms	85 °C	-40 °C	1.2 VDC	12 VDC	PC Pin	Sealed - Flux Protection	14 VDC	35 A	1.5 W	7 VDC
Panasonic Electric Works CM1F-12V	SPDT (1 Form C)	Non Latching	10 ms	125 mA	Socketable	96 Ohms	Cadmium Free Silver Alloy	10 ms	85 °C	-40 °C	1.2 VDC	12 VDC	Plug In	Sealed - Flux Protection	14 VDC	35 A	1.5 W	7 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 3.72
