2N7002W-G
ActiveComchip Technology

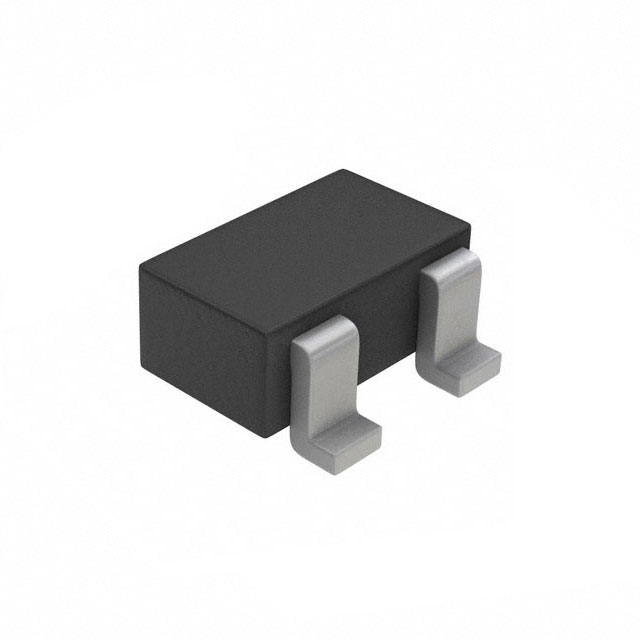

MOSFET N-CH 60V 0.115A SOT323
Deep-Dive with AI
Search across all available documentation for this part.
2N7002W-G
ActiveComchip Technology
MOSFET N-CH 60V 0.115A SOT323
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2N7002W-G | 2N7002 Series |
|---|---|---|
| Current - Continuous Drain (Id) @ 25°C | 115 mA | 115 mA |
| Drain to Source Voltage (Vdss) | 60 V | 60 V |
| Drive Voltage (Max Rds On, Min Rds On) [Max] | 10 V | 10 V |
| Drive Voltage (Max Rds On, Min Rds On) [Min] | 5 V | 5 V |
| FET Type | N-Channel | N-Channel |
| Input Capacitance (Ciss) (Max) @ Vds | 50 pF | 50 pF |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature | - | 150 °C |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Package / Case | SC-70, SOT-323 | SC-70, SOT-323 |
| Power Dissipation (Max) | 200 mW | 200 mW |
| Rds On (Max) @ Id, Vgs | 5 Ohm | 5 Ohm |
| Supplier Device Package | SOT-323 | SOT-323 |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V | 20 V |
| Vgs(th) (Max) @ Id | 2.5 V | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.36 | |
| 10 | $ 0.25 | |||
| 100 | $ 0.13 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.08 | |||
| Digi-Reel® | 1 | $ 0.36 | ||
| 10 | $ 0.25 | |||
| 100 | $ 0.13 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.08 | |||
| Tape & Reel (TR) | 3000 | $ 0.07 | ||
| 6000 | $ 0.06 | |||
| 9000 | $ 0.06 | |||
| 15000 | $ 0.05 | |||
| 21000 | $ 0.05 | |||
| 30000 | $ 0.05 | |||
| 75000 | $ 0.04 | |||
| 150000 | $ 0.04 | |||
2N7002 Series
MOSFET N-CH 60V 0.115A SOT323
| Part | Package / Case | Mounting Type | Power Dissipation (Max) | Supplier Device Package | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Technology | Operating Temperature | Vgs (Max) | FET Type | Vgs(th) (Max) @ Id | Drive Voltage (Max Rds On, Min Rds On) [Max] | Drive Voltage (Max Rds On, Min Rds On) [Min] | Input Capacitance (Ciss) (Max) @ Vds | Rds On (Max) @ Id, Vgs | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Comchip Technology 2N7002W-HF | SC-70, SOT-323 | Surface Mount | 200 mW | SOT-323 | 60 V | 115 mA | MOSFET (Metal Oxide) | 150 °C | 20 V | N-Channel | 2.5 V | 10 V | 5 V | 50 pF | 5 Ohm | ||
Comchip Technology 2N7002W-G | SC-70, SOT-323 | Surface Mount | 200 mW | SOT-323 | 60 V | 115 mA | MOSFET (Metal Oxide) | 20 V | N-Channel | 2.5 V | 10 V | 5 V | 50 pF | 5 Ohm | -55 °C | 150 °C |
Description
General part information
2N7002 Series
N-Channel 60 V 115mA (Ta) 200mW (Ta) Surface Mount SOT-323
