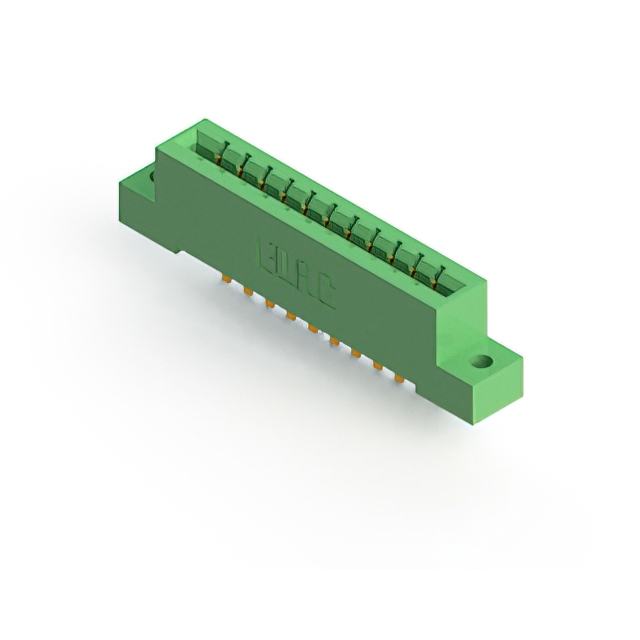

333-011-544-102

Active

EDAC Inc.

CONN EDGE SGL FMALE 11POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

333-011-544-102

Active

EDAC Inc.

CONN EDGE SGL FMALE 11POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	333-011-544-102

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	11
Number of Positions/Bay/Row [custom]	11
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

333-011 Series

Part	Number of Rows	Termination	Card Type	Gender	Number of Positions/Bay/Row [custom]	Contact Finish	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Type	Number of Positions	Contact Material	Color	Pitch [x]	Pitch [x]	Read Out	Termination Rows	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 333-011-520-108	1	Solder	Non Specified - Single Edge	Female	11	Gold	Polyester Thermoplastic	-40 °C	105 ░C	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	11	Copper Alloy	Green	0.156 in	3.96 mm	Single	1	4-40 Flush Mount Threaded Insert Top Opening	10 Áin	0.25 Ám
EDAC Inc. 333-011-523-102	1	Solder	Non Specified - Single Edge	Female	11	Gold	Polyester Thermoplastic	-40 °C	105 ░C	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	11	Copper Alloy	Green	0.156 in	3.96 mm	Single	1	Flush Mount Top Opening Unthreaded	10 Áin	0.25 Ám	3.25 mm	0.128 "
EDAC Inc. 333-011-521-101	1	Solder	Non Specified - Single Edge	Female	11	Gold	Polyester Thermoplastic	-40 °C	105 ░C	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	11	Copper Alloy	Green	0.156 in	3.96 mm	Single	1		10 Áin	0.25 Ám
EDAC Inc. 333-011-520-103	1	Solder	Non Specified - Single Edge	Female	11	Gold	Polyester Thermoplastic	-40 °C	105 ░C	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	11	Copper Alloy	Green	0.156 in	3.96 mm	Single	1	Floating Bobbin Flush Mount	10 Áin	0.25 Ám	2.95 mm	0.116 in
EDAC Inc. 333-011-544-102	1	Wire Wrap	Non Specified - Single Edge	Female	11	Gold	Polyester Thermoplastic	-40 °C	105 ░C	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	11	Copper Alloy	Green	0.156 in	3.96 mm	Single	1	Flush Mount Top Opening Unthreaded	10 Áin	0.25 Ám	3.25 mm	0.128 "
EDAC Inc. 333-011-524-108	1	Solder	Non Specified - Single Edge	Female	11	Gold	Polyester Thermoplastic	-40 °C	105 ░C	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	11	Copper Alloy	Green	0.156 in	3.96 mm	Single	1	4-40 Flush Mount Threaded Insert Top Opening	10 Áin	0.25 Ám
EDAC Inc. 333-011-559-104	1	Wire Wrap	Non Specified - Single Edge	Female	11	Gold	Polyester Thermoplastic	-40 °C	105 ░C	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	11	Copper Alloy	Green	0.156 in	3.96 mm	Single	1	Flush Mount Top Opening Unthreaded	10 Áin	0.25 Ám	3.96 mm	0.156 in
EDAC Inc. 333-011-542-104	1	Wire Wrap	Non Specified - Single Edge	Female	11	Gold	Polyester Thermoplastic	-40 °C	105 ░C	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	11	Copper Alloy	Green	0.156 in	3.96 mm	Single	1	Flush Mount Top Opening Unthreaded	10 Áin	0.25 Ám	3.96 mm	0.156 in
EDAC Inc. 333-011-558-604	1	Wire Wrap	Non Specified - Single Edge	Female	11	Gold	Polyester Thermoplastic	-40 °C	105 ░C	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	11	Copper Alloy	Green	0.156 in	3.96 mm	Single	1	Top Mount Opening Unthreaded	10 Áin	0.25 Ám	3.96 mm	0.156 in
EDAC Inc. 333-011-544-108	1	Wire Wrap	Non Specified - Single Edge	Female	11	Gold	Polyester Thermoplastic	-40 °C	105 ░C	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	11	Copper Alloy	Green	0.156 in	3.96 mm	Single	1	4-40 Flush Mount Threaded Insert Top Opening	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 5.42

Description

General part information

333-011 Series

11 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
