N/MS3101B28-11P

Active

JAE Electronics

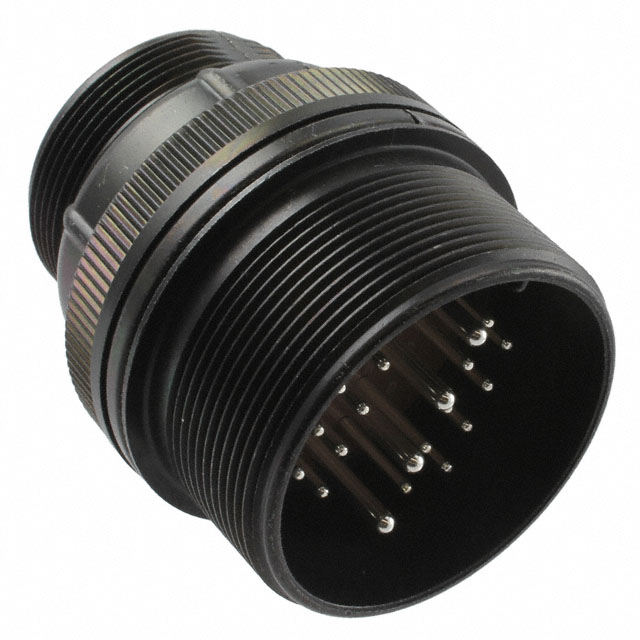

CONN RCPT MALE 22P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCircular Connectors

N/MS3101B28-11P

Active

JAE Electronics

CONN RCPT MALE 22P SOLDER CUP

Deep-Dive with AI

DocumentsCircular Connectors

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	N/MS3101B28-11P

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A, 23 A
Features	Backshell
Insert Material	Synthetic Resin
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	22 positions
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Zinc
Shell Material	Aluminum Alloy
Shell Size - Insert	28-11
Voltage Rating	500 VAC

N/MS3101 Series

Part	Insert Material	Shell Finish	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Current Rating (Amps)	Orientation	Contact Finish - Mating	Voltage Rating	Features	Number of Positions	Primary Material	Color	Connector Type	Mounting Type	Material Flammability Rating	Contact Material	Shell Size - Insert [Max]	Shell Size - Insert [Min]
JAE Electronics N/MS3101B28-11P	Synthetic Resin	Zinc	Aluminum Alloy	-55 °C	125 °C	28-11	13 A 23 A	N	Silver	500 VAC	Backshell	22 positions	Metal	Black	Male Pins Receptacle	Free Hanging (In-Line)	UL94 V-0	Copper Alloy
JAE Electronics N/MS3101B18-8S	Synthetic Resin	Zinc	Aluminum Alloy	-55 °C	125 °C	18-8	13 A 23 A	N	Silver	500 VAC	Backshell	8	Metal	Black	Receptacle Female Sockets	Free Hanging (In-Line)	UL94 V-0	Copper Alloy
JAE Electronics N/MS3101B12S-3P	Synthetic Resin	Zinc	Aluminum Alloy	-55 °C	125 °C	12S-3	13 A	N	Silver	500 VAC	Backshell	2	Metal	Black	Male Pins Receptacle	Free Hanging (In-Line)	UL94 V-0	Copper Alloy
JAE Electronics N/MS3101B16S-1S	Synthetic Resin	Zinc	Aluminum Alloy	-55 °C	125 °C	16S-1	13 A	N	Silver	500 VAC	Backshell	7	Metal	Black	Receptacle Female Sockets	Free Hanging (In-Line)	UL94 V-0	Copper Alloy
JAE Electronics N/MS3101B20-29S	Synthetic Resin	Zinc	Aluminum Alloy	-55 °C	125 °C		13 A	N	Silver	500 VAC	Backshell		Metal	Black	Receptacle Female Sockets	Free Hanging (In-Line)	UL94 V-0	Copper Alloy	29	20
JAE Electronics N/MS3101B14S-2S	Synthetic Resin	Zinc	Aluminum Alloy	-55 °C	125 °C	14S-2	13 A	N	Silver		Backshell	4	Metal	Black	Receptacle Female Sockets	Free Hanging (In-Line)	UL94 V-0	Copper Alloy
JAE Electronics N/MS3101B18-1S	Synthetic Resin	Zinc	Aluminum Alloy	-55 °C	125 °C		13 A	N	Silver		Backshell	10	Metal	Black	Receptacle Female Sockets	Free Hanging (In-Line)	UL94 V-0	Copper Alloy	1	18
JAE Electronics N/MS3101B20-15S	Synthetic Resin	Zinc	Aluminum Alloy	-55 °C	125 °C		23 A	N	Silver	500 VAC	Backshell	7	Metal	Black	Receptacle Female Sockets	Free Hanging (In-Line)	UL94 V-0	Copper Alloy	15	20
JAE Electronics N/MS3101B14S-6S	Synthetic Resin	Zinc	Aluminum Alloy	-55 °C	125 °C	14S-6	13 A	N	Silver		Backshell	6	Metal	Black	Receptacle Female Sockets	Free Hanging (In-Line)	UL94 V-0	Copper Alloy
JAE Electronics N/MS3101B22-23P	Synthetic Resin	Zinc	Aluminum Alloy	-55 °C	125 °C		23 A	N	Silver		Backshell	8	Metal	Black	Male Pins Receptacle	Free Hanging (In-Line)	UL94 V-0	Copper Alloy	23	22

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	6	$ 79.00

Description

General part information

N/MS3101 Series

22 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

Circular Connectors

Datasheet
