387-007-523-668
ActiveEDAC Inc.

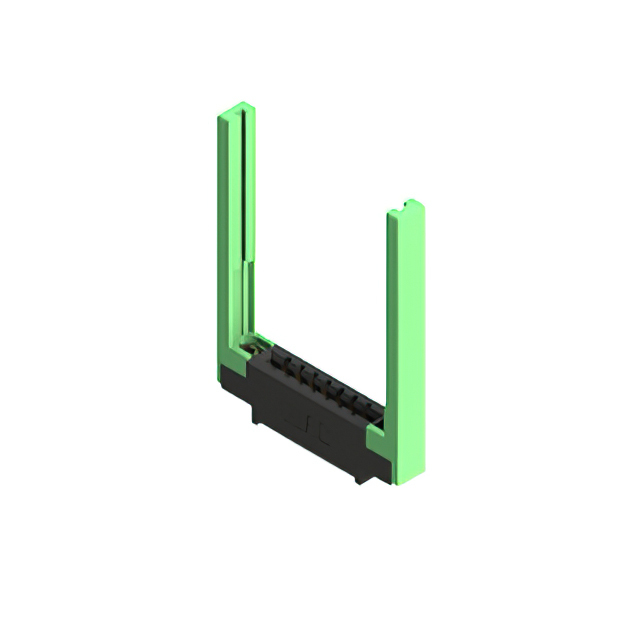

CONN EDGE SGL FMALE 7POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
387-007-523-668
ActiveEDAC Inc.
CONN EDGE SGL FMALE 7POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 387-007-523-668 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 7 |
| Number of Positions/Bay/Row [custom] | 7 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
387-007 Series
...
| Part | Read Out | Termination | Flange Feature | Number of Rows | Mounting Type | Card Type | Contact Finish | Number of Positions/Bay/Row [custom] | Gender | Pitch [x] | Pitch [x] | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Color | Termination Rows | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Single | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Through Hole | Non Specified - Single Edge | Gold | 7 | Female | 0.156 in | 3.96 mm | 7 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Cantilever | Black | 1 | ||||
EDAC Inc. | Single | Solder | 4-40 Threaded Insert Top Mount Opening | 1 | Through Hole | Non Specified - Single Edge | Gold | 7 | Female | 0.156 in | 3.96 mm | 7 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Cantilever | Black | 1 | ||||
EDAC Inc. | Single | Solder | 1 | Through Hole | Non Specified - Single Edge | Gold | 7 | Female | 0.156 in | 3.96 mm | 7 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Cantilever | Black | 1 | 3.25 mm | 0.128 in | |||
EDAC Inc. | Single | Wire Wrap | Floating Bobbin Flush Mount | 1 | Through Hole | Non Specified - Single Edge | Gold | 7 | Female | 0.156 in | 3.96 mm | 7 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Cantilever | Black | 1 | 0.116 in | 2.95 mm | ||
EDAC Inc. | Single | Wire Wrap | Flush Mount Top Opening Unthreaded | 1 | Through Hole | Non Specified - Single Edge | Gold | 7 | Female | 0.156 in | 3.96 mm | 7 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Cantilever | Black | 1 | 0.128 " | 3.25 mm | ||
EDAC Inc. | Single | Wire Wrap | Flush Mount Top Opening Unthreaded | 1 | Through Hole Right Angle | Non Specified - Single Edge | Gold | 7 | Female | 0.156 in | 3.96 mm | 7 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Cantilever | Black | 1 | 0.156 in | 3.96 mm | ||
EDAC Inc. | Single | Solder | 4-40 Threaded Insert Top Mount Opening | 1 | Through Hole | Non Specified - Single Edge | Gold | 7 | Female | 0.156 in | 3.96 mm | 7 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Cantilever | Black | 1 | ||||
EDAC Inc. | Single | Wire Wrap | 4-40 Threaded Insert Top Mount Opening | 1 | Through Hole Right Angle | Non Specified - Single Edge | Gold | 7 | Female | 0.156 in | 3.96 mm | 7 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Cantilever | Black | 1 | ||||
EDAC Inc. | Single | Wire Wrap | 1 | Through Hole | Non Specified - Single Edge | Gold | 7 | Female | 0.156 in | 3.96 mm | 7 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Cantilever | Black | 1 | |||||
EDAC Inc. | Single | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Through Hole | Non Specified - Single Edge | Gold | 7 | Female | 0.156 in | 3.96 mm | 7 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | -40 °C | 105 ░C | Cantilever | Black | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 8.28 | |
Description
General part information
387-007 Series
7 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
