CL4490-1000-232-SP

Active

Ezurio LLC

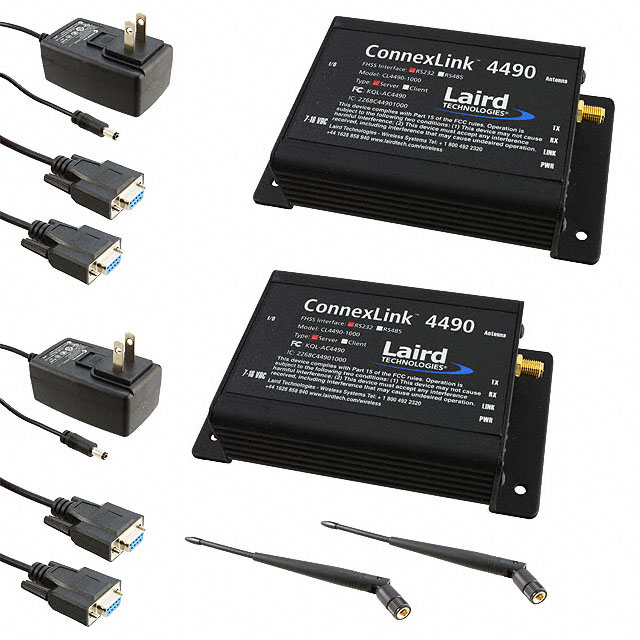

TXRX 900MHZ RS232 1W W/ANT'S DB9

Search across all available documentation for this part.

Active

Ezurio LLC

TXRX 900MHZ RS232 1W W/ANT'S DB9

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 300.52

General part information

RF Transceiver 902MHz ~ 928MHz FHSS, FSK RS-232 76.8kbps

Technical documentation and resources

Specification	CL4490-1000-232-SP	CL4490 Series

Applications	General Purpose	General Purpose
Data Rate (Max)	76.8 kbps	76.8 kbps
Data Rate (Max)	-	115.2 kbps
Features	2	2 - 450 pcs per Pkg
Features	-	USB Interface
Frequency [Max]	928 MHz	928 MHz
Frequency [Min]	902 MHz	902 MHz
Function	Transceiver	2 Transceivers, FHSS, Transceiver
Interface	RS-232	RS-485, RS-232, RS-422/485, USB
Modulation or Protocol	FSK, FHSS	FSK, FHSS
Power - Output	1 W	1 - 200 W
Sensitivity	-99 dBm	-99 dBm
Voltage - Supply [Max]	18 V	18 - 28 V
Voltage - Supply [Min]	7 V	7 V

Part	Data Rate (Max)	Sensitivity	Voltage - Supply [Max]	Voltage - Supply [Min]	Modulation or Protocol	Features	Interface	Frequency [Min]	Frequency [Max]	Function	Power - Output	Applications	Data Rate (Max) [Max]	Features
Ezurio LLC CL4490-1000-485-SP	76.8 kbps	-99 dBm	18 V	7 V	FHSS, FSK	2 pcs per Pkg	RS-485	902 MHz	928 MHz	2 Transceivers	1 W	General Purpose
Ezurio LLC CL4490-1000-PRO-SP	76.8 kbps	-99 dBm	28 V	7 V	FHSS, FSK	450 m	RS-232, RS-422/485	902 MHz	928 MHz	FHSS, Transceiver	1 W	General Purpose
Ezurio LLC CL4490-200-05		-99 dBm			FHSS, FSK		USB	902 MHz	928 MHz	Transceiver	200 mW	General Purpose	115.2 kbps	USB Interface
Ezurio LLC CL4490-1000-PRO	76.8 kbps	-99 dBm	18 V	7 V	FHSS, FSK	450 m	RS-232, RS-422/485	902 MHz	928 MHz	Transceiver	1 W	General Purpose
Ezurio LLC CL4490-1000-232-SP	76.8 kbps	-99 dBm	18 V	7 V	FHSS, FSK	2	RS-232	902 MHz	928 MHz	Transceiver	1 W	General Purpose
Ezurio LLC CL4490-1000-UPR-SP	76.8 kbps	-99 dBm	18 V	7 V	FHSS, FSK		RS-232, RS-485	902 MHz	928 MHz	FHSS, Transceiver	1 W	General Purpose
