A6SR-4104-P

Active

Omron Electronics Inc-EMC Div

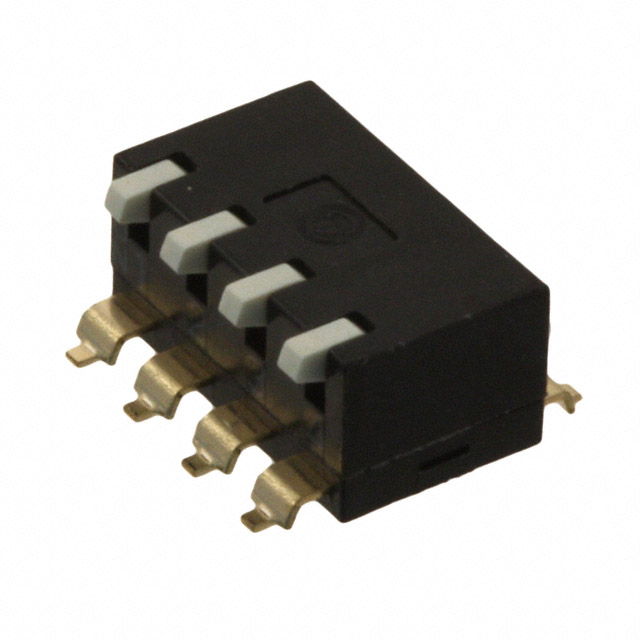

SWITCH PIANO DIP SPST 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

A6SR-4104-P

Active

Omron Electronics Inc-EMC Div

SWITCH PIANO DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.05
		10	$ 2.00
		25	$ 1.82
		100	$ 1.58
		250	$ 1.43
	Digi-Reel®	1	$ 2.05
		10	$ 2.00
		25	$ 1.82
		100	$ 1.58
		250	$ 1.43
	Tape & Reel (TR)	700	$ 1.33
		1400	$ 1.23
		3500	$ 1.12
		4900	$ 1.04

Description

General part information

A6SR Series

Dip Switch SPST 4 Position Surface Mount, Right Angle Piano Actuator 25mA 24VDC

Documents

Technical documentation and resources

How to Read Date Codes

Datasheet

Specification	A6SR-4104-P	A6SR Series

Actuator Level	Raised	Raised, Flush, Recessed
Actuator Type	Piano	Piano
Circuit	SPST	SPST
Contact Finish	Gold	Gold
Current Rating (Amps)	25 mA	25 mA
Electrical Life	1000 Cycles	1000 Cycles
Height Above Board [z]	5 mm	5 mm
Height Above Board [z]	0.197 in	0.197 in
Length	10.06 mm	10.06 - 25.3 mm
Length	0.396 "	0.396 - 0.996 in
Length	-	0.196 - 0.596 in
Length	-	4.98 - 15.14 mm
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Number of Positions	4	2 - 10
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Pitch	Full	Full
Pitch [x]	0.1 in	0.1 in
Pitch [x]	2.54 mm	2.54 mm
Termination Style	Gull Wing	Gull Wing
Voltage Rating	24 VDC	24 VDC
Washable	False	False

Part

Voltage Rating

Actuator Level

Current Rating (Amps)

Electrical Life

Actuator Type

Circuit

Washable

Termination Style

Contact Finish

Pitch [x]

Pitch

Pitch [x]

Mounting Type

Height Above Board [z]

Operating Temperature [Min]

Operating Temperature [Max]

Number of Positions

Length

Length [x]

Omron Electronics Inc-EMC Div

A6SR-0104-P

24 VDC

Raised

25 mA

1000 Cycles

Piano

SPST

Gull Wing

Gold

0.1 in

Full

2.54 mm

Surface Mount, Right Angle

5 mm

0.197 in

-20 C

70 °C

25.3 mm

0.996 in

Omron Electronics Inc-EMC Div

A6SR-8104-P

24 VDC

Raised

25 mA

1000 Cycles

Piano

SPST

Gull Wing

Gold

0.1 in

Full

2.54 mm

Surface Mount, Right Angle

5 mm

0.197 in

-20 C

70 °C

20.22 mm

0.796 "

Omron Electronics Inc-EMC Div

A6SR-2101

24 VDC

Flush, Recessed

25 mA

1000 Cycles

Piano

SPST

Gull Wing

Gold

0.1 in

Full

2.54 mm

Surface Mount, Right Angle

5 mm

0.197 in

-20 C

70 °C

0.196 in

4.98 mm

Omron Electronics Inc-EMC Div

A6SR-8101-R100

24 VDC

Flush, Recessed

25 mA

1000 Cycles

Piano

SPST

Gull Wing

Gold

0.1 in

Full

2.54 mm

Surface Mount, Right Angle

5 mm

0.197 in

-20 C

70 °C

20.22 mm

0.796 "

Omron Electronics Inc-EMC Div

A6SR-0101

24 VDC

Flush, Recessed

25 mA

1000 Cycles

Piano

SPST

Gull Wing

Gold

0.1 in

Full

2.54 mm

Surface Mount, Right Angle

5 mm

0.197 in

-20 C

70 °C

25.3 mm

0.996 in

Omron Electronics Inc-EMC Div

A6SR-0101-R100

24 VDC

Flush, Recessed

25 mA

1000 Cycles

Piano

SPST

Gull Wing

Gold

0.1 in

Full

2.54 mm

Surface Mount, Right Angle

5 mm

0.197 in

-20 C

70 °C

25.3 mm

0.996 in

Omron Electronics Inc-EMC Div

A6SR-4104-P

24 VDC

Raised

25 mA

1000 Cycles

Piano

SPST

Gull Wing

Gold

0.1 in

Full

2.54 mm

Surface Mount, Right Angle

5 mm

0.197 in

-20 C

70 °C

10.06 mm

0.396 "

Omron Electronics Inc-EMC Div

A6SR-0104

24 VDC

Raised

25 mA

1000 Cycles

Piano

SPST

Gull Wing

Gold

0.1 in

Full

2.54 mm

Surface Mount, Right Angle

5 mm

0.197 in

-20 C

70 °C

25.3 mm

0.996 in

Omron Electronics Inc-EMC Div

A6SR-4101-P

24 VDC

Flush, Recessed

25 mA

1000 Cycles

Piano

SPST

Gull Wing

Gold

0.1 in

Full

2.54 mm

Surface Mount, Right Angle

5 mm

0.197 in

-20 C

70 °C

10.06 mm

0.396 "

Omron Electronics Inc-EMC Div

A6SR-6101

24 VDC

Flush, Recessed

25 mA

1000 Cycles

Piano

SPST

Gull Wing

Gold

0.1 in

Full

2.54 mm

Surface Mount, Right Angle

5 mm

0.197 in

-20 C

70 °C

0.596 "

15.14 mm

Part	Voltage Rating	Actuator Level	Current Rating (Amps)	Electrical Life	Actuator Type	Circuit	Termination Style	Contact Finish	Pitch [x]	Pitch	Pitch [x]	Mounting Type	Height Above Board [z]	Height Above Board [z]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Length	Length	Length [x]	Length [x]
Omron Electronics Inc-EMC Div A6SR-0104-P	24 VDC	Raised	25 mA	1000 Cycles	Piano	SPST	Gull Wing	Gold	0.1 in	Full	2.54 mm	Surface Mount, Right Angle	5 mm	0.197 in	-20 C	70 °C	10	25.3 mm	0.996 in
Omron Electronics Inc-EMC Div A6SR-8104-P	24 VDC	Raised	25 mA	1000 Cycles	Piano	SPST	Gull Wing	Gold	0.1 in	Full	2.54 mm	Surface Mount, Right Angle	5 mm	0.197 in	-20 C	70 °C	8	20.22 mm	0.796 "
Omron Electronics Inc-EMC Div A6SR-2101	24 VDC	Flush, Recessed	25 mA	1000 Cycles	Piano	SPST	Gull Wing	Gold	0.1 in	Full	2.54 mm	Surface Mount, Right Angle	5 mm	0.197 in	-20 C	70 °C	2			0.196 in	4.98 mm
Omron Electronics Inc-EMC Div A6SR-8101-R100	24 VDC	Flush, Recessed	25 mA	1000 Cycles	Piano	SPST	Gull Wing	Gold	0.1 in	Full	2.54 mm	Surface Mount, Right Angle	5 mm	0.197 in	-20 C	70 °C	8	20.22 mm	0.796 "
Omron Electronics Inc-EMC Div A6SR-0101	24 VDC	Flush, Recessed	25 mA	1000 Cycles	Piano	SPST	Gull Wing	Gold	0.1 in	Full	2.54 mm	Surface Mount, Right Angle	5 mm	0.197 in	-20 C	70 °C	10	25.3 mm	0.996 in
Omron Electronics Inc-EMC Div A6SR-0101-R100	24 VDC	Flush, Recessed	25 mA	1000 Cycles	Piano	SPST	Gull Wing	Gold	0.1 in	Full	2.54 mm	Surface Mount, Right Angle	5 mm	0.197 in	-20 C	70 °C	10	25.3 mm	0.996 in
Omron Electronics Inc-EMC Div A6SR-4104-P	24 VDC	Raised	25 mA	1000 Cycles	Piano	SPST	Gull Wing	Gold	0.1 in	Full	2.54 mm	Surface Mount, Right Angle	5 mm	0.197 in	-20 C	70 °C	4	10.06 mm	0.396 "
Omron Electronics Inc-EMC Div A6SR-0104	24 VDC	Raised	25 mA	1000 Cycles	Piano	SPST	Gull Wing	Gold	0.1 in	Full	2.54 mm	Surface Mount, Right Angle	5 mm	0.197 in	-20 C	70 °C	10	25.3 mm	0.996 in
Omron Electronics Inc-EMC Div A6SR-4101-P	24 VDC	Flush, Recessed	25 mA	1000 Cycles	Piano	SPST	Gull Wing	Gold	0.1 in	Full	2.54 mm	Surface Mount, Right Angle	5 mm	0.197 in	-20 C	70 °C	4	10.06 mm	0.396 "
Omron Electronics Inc-EMC Div A6SR-6101	24 VDC	Flush, Recessed	25 mA	1000 Cycles	Piano	SPST	Gull Wing	Gold	0.1 in	Full	2.54 mm	Surface Mount, Right Angle	5 mm	0.197 in	-20 C	70 °C	6			0.596 "	15.14 mm
