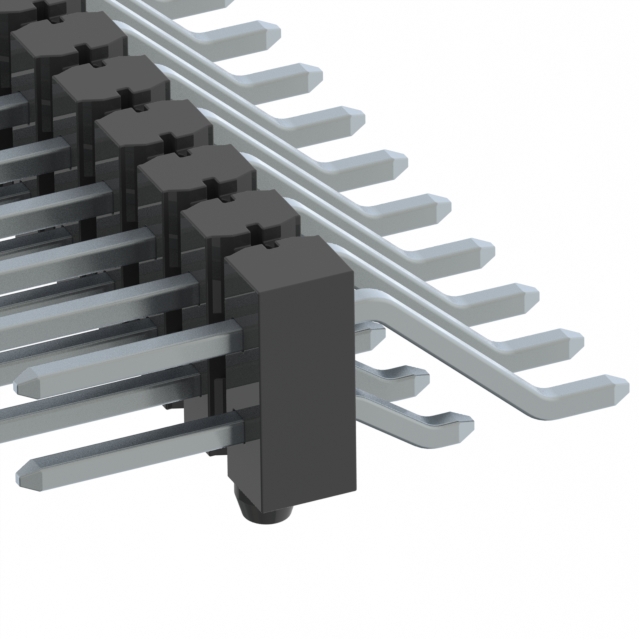

TSM-133-01-T-DH-A

Active

Samtec Inc.

CONN HEADER SMD R/A 66POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTSM Double Row, Horizontal Footprint Datasheet

TSM-133-01-T-DH-A

Active

Samtec Inc.

CONN HEADER SMD R/A 66POS 2.54MM

Deep-Dive with AI

DocumentsTSM Double Row, Horizontal Footprint Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSM-133-01-T-DH-A

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	0.24 in
Insulation Height	6.1 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	66
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TSM-133 Series

Part	Number of Positions Loaded	Contact Finish - Post	Material Flammability Rating	Insulation Color	Number of Positions	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Style	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Fastening Type	Connector Type	Shrouding	Features	Insulation Height	Insulation Height	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Type	Insulation Material	Contact Material	Contact Length - Mating [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Samtec Inc. TSM-133-02-L-SH-A	All	Tin	UL94 V-0	Black	33	8.13 mm	0.32 in	-55 °C	125 °C	Surface Mount Right Angle	Board to Board Cable	Gold	10 çin	0.25 çm	Solder	Push-Pull	Header	Unshrouded	Board Guide	3.05 mm	0.12 in	1	0.1 in	2.54 mm	Square	Male Pin	Liquid Crystal Polymer (LCP)	Phosphor Bronze
Samtec Inc. TSM-133-01-TL-DV	All	Tin	UL94 V-0	Black	66	5.84 mm		-55 °C	105 ░C	Surface Mount	Board to Board Cable				Solder	Push-Pull	Cuttable Header	Unshrouded		2.54 mm	0.1 in	2	0.1 in	2.54 mm	Square	Male Pin	Liquid Crystal Polymer (LCP)	Phosphor Bronze	0.23 in	2.54 mm	0.1 in
Samtec Inc. TSM-133-01-T-DH-A	All	Tin	UL94 V-0	Black	66	5.84 mm		-55 °C	105 ░C	Surface Mount Right Angle	Board to Board Cable				Solder	Push-Pull	Header	Unshrouded	Board Guide	6.1 mm	0.24 in	2	0.1 in	2.54 mm	Square	Male Pin	Liquid Crystal Polymer (LCP)	Phosphor Bronze	0.23 in	2.54 mm	0.1 in
Samtec Inc. TSM-133-01-F-DH-A	All	Tin	UL94 V-0	Black	66	5.84 mm		-55 °C	125 °C	Surface Mount Right Angle	Board to Board Cable	Gold	3 µin	0.076 µm	Solder	Push-Pull	Header	Unshrouded	Board Guide	6.1 mm	0.24 in	2	0.1 in	2.54 mm	Square	Male Pin	Liquid Crystal Polymer (LCP)	Phosphor Bronze	0.23 in	2.54 mm	0.1 in
Samtec Inc. TSM-133-02-STL-DV	All	Tin	UL94 V-0	Black	66	8.13 mm	0.32 in	-55 °C	125 °C	Surface Mount	Board to Board Cable	Gold	30 Áin	0.76 Ám	Solder	Push-Pull	Cuttable Header	Unshrouded		2.54 mm	0.1 in	2	0.1 in	2.54 mm	Square	Male Pin	Liquid Crystal Polymer (LCP)	Phosphor Bronze		2.54 mm	0.1 in
Samtec Inc. TSM-133-04-L-DV-A	All	Tin	UL94 V-0	Black	66	3.05 mm	0.12 in	-55 °C	125 °C	Surface Mount	Board to Board Cable	Gold	10 çin	0.25 çm	Solder	Push-Pull	Cuttable Header	Unshrouded	Board Guide	2.54 mm	0.1 in	2	0.1 in	2.54 mm	Square	Male Pin	Liquid Crystal Polymer (LCP)	Phosphor Bronze		2.54 mm	0.1 in
Samtec Inc. TSM-133-02-TL-DV	All	Tin	UL94 V-0	Black	66	8.13 mm	0.32 in	-55 °C	105 ░C	Surface Mount	Board to Board Cable				Solder	Push-Pull	Cuttable Header	Unshrouded		2.54 mm	0.1 in	2	0.1 in	2.54 mm	Square	Male Pin	Liquid Crystal Polymer (LCP)	Phosphor Bronze		2.54 mm	0.1 in
Samtec Inc. TSM-133-01-F-DV-A	All	Tin	UL94 V-0	Black	66	5.84 mm		-55 °C	125 °C	Surface Mount	Board to Board Cable	Gold	3 µin	0.076 µm	Solder	Push-Pull	Cuttable Header	Unshrouded	Board Guide	2.54 mm	0.1 in	2	0.1 in	2.54 mm	Square	Male Pin	Liquid Crystal Polymer (LCP)	Phosphor Bronze	0.23 in	2.54 mm	0.1 in
Samtec Inc. TSM-133-01-T-DH	All	Tin	UL94 V-0	Black	66	5.84 mm		-55 °C	105 ░C	Surface Mount Right Angle	Board to Board Cable				Solder	Push-Pull	Header	Unshrouded		6.1 mm	0.24 in	2	0.1 in	2.54 mm	Square	Male Pin	Liquid Crystal Polymer (LCP)	Phosphor Bronze	0.23 in	2.54 mm	0.1 in
Samtec Inc. TSM-133-01-L-SH-A-P	All	Tin	UL94 V-0	Black	33	5.84 mm		-55 °C	125 °C	Surface Mount Right Angle	Board to Board Cable	Gold	10 çin	0.25 çm	Solder	Push-Pull	Header	Unshrouded	Board Guide Pick and Place	3.05 mm	0.12 in	1	0.1 in	2.54 mm	Square	Male Pin	Liquid Crystal Polymer (LCP)	Phosphor Bronze	0.23 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	6	$ 5.83

Description

General part information

TSM-133 Series

Connector Header Surface Mount, Right Angle 66 position 0.100" (2.54mm)

Documents

Technical documentation and resources

TSM Double Row, Horizontal Footprint

Datasheet
