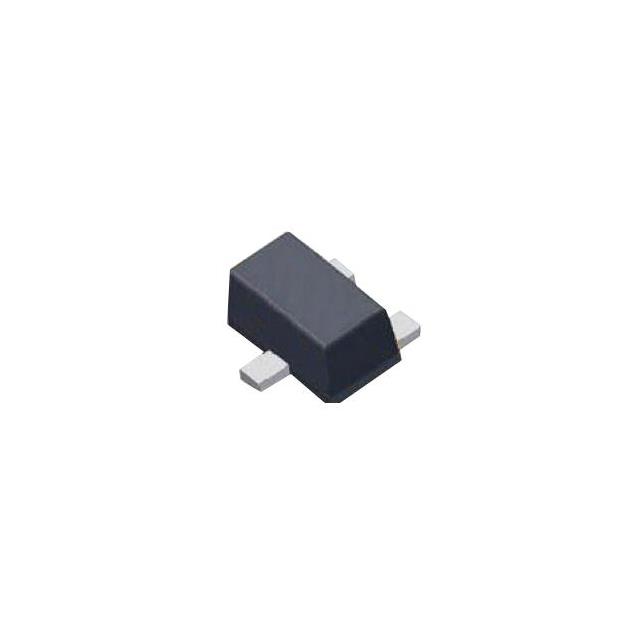

GSBAT54AT

Active

DIODE ARR SCHOT 30V 200MA SOT523

Active

DIODE ARR SCHOT 30V 200MA SOT523

Description

General part information

Diode Array 1 Pair Common Anode 30 V 200mA Surface Mount SOT-523

Parameters and characteristics for this part

Specification	GSBAT54AT

Current - Average Rectified (Io) (per Diode)	200 mA
Current - Reverse Leakage	2 µA
Diode Configuration	Common Anode
Diode Pair Count	1 pair
Mounting Type	Surface Mount
Operating Temperature - Junction (Max)	150 °C
Operating Temperature - Junction (Min)	-65 °C
Package / Case	SOT-523
Package Name	SOT-523
Reverse Recovery Time (trr)	5 ns
Speed	Any Speed, Small Signal
Speed - Fast Recovery (Maximum)	200 mA
Speed - Small Signal Current Max	200 mA, 200 mA, 200 mA
Technology	Schottky
Voltage - DC Reverse (Vr) (Max)	30 V
Voltage - Forward (Vf) (Max)	500 mV, 500 mV

Part	Diode Pair Count	Diode Configuration	Current - Average Rectified (Io) (per Diode)	Voltage - DC Reverse (Vr) (Max)	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Package Name	Mounting Type	Package / Case	Reverse Recovery Time (trr)	Voltage - Forward (Vf) (Max)	Speed - Small Signal Current Max	Speed	Speed - Fast Recovery (Maximum)	Current - Reverse Leakage	Technology
Good-Ark Semiconductor GSBAT54AT	1 pair	Common Anode	200 mA	30 V	150 °C	-65 °C	SOT-523	Surface Mount	SOT-523	5 ns	500 mV 500 mV	200 mA 200 mA 200 mA	Any Speed Small Signal	200 mA	2 µA	Schottky
