Q-0D03W0003072i

Active

Amphenol Custom Cable

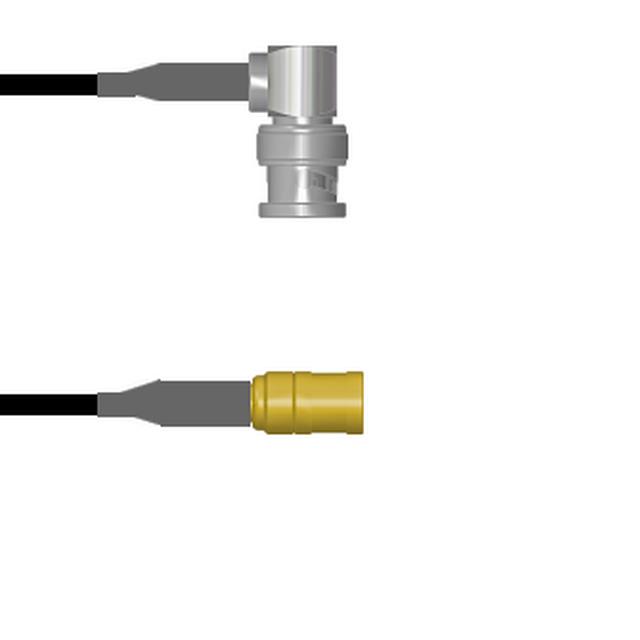

COAX CABLE BNC TO SMB 6'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CABLE BNC TO SMB 6'

Technical Specifications

Parameters and characteristics for this part

Part	1st Connector	1st Contact Gender	2nd Connector Mounting Type	Features	Style	Overall Impedance	Length [x]	Length [x]	2nd Contact Gender	2nd Connector	Cable Type	Frequency - Max [Max]	Color	1st Connector Mounting Type	Length	Length	Length
Amphenol Custom Cable Q-0D03W0005.25M	BNC Plug Right Angle	Male	Free Hanging (In-Line)	Shielded	BNC to SMB	50 Ohms	9.843 "	250 mm	Male	SMB Plug	RG-316	4 GHz	Copper	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D03W0003072i	BNC Plug Right Angle	Male	Free Hanging (In-Line)	Shielded	BNC to SMB	50 Ohms			Male	SMB Plug	RG-174	4 GHz	Black	Free Hanging (In-Line)	6 ft	72 in	1.8 m
Amphenol Custom Cable Q-0D03W0003001M	BNC Plug Right Angle	Male	Free Hanging (In-Line)	Shielded	BNC to SMB	50 Ohms			Male	SMB Plug	RG-174	4 GHz	Black	Free Hanging (In-Line)	3.3 ft	39.4 in	1 m
Amphenol Custom Cable Q-0D03W0003.25M	BNC Plug Right Angle	Male	Free Hanging (In-Line)	Shielded	BNC to SMB	50 Ohms	9.843 "	250 mm	Male	SMB Plug	RG-174	4 GHz	Black	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D03W0003006i	BNC Plug Right Angle	Male	Free Hanging (In-Line)	Shielded	BNC to SMB	50 Ohms			Male	SMB Plug	RG-174	4 GHz	Black	Free Hanging (In-Line)		6 in	152.4 mm
Amphenol Custom Cable Q-0D03W0005002M	BNC Plug Right Angle	Male	Free Hanging (In-Line)	Shielded	BNC to SMB	50 Ohms			Male	SMB Plug	RG-316	4 GHz	Copper	Free Hanging (In-Line)	6.6 ft	78.7 in	2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial BNC to SMB RG-174 72.0" (1.8m) 6.0'

Technical documentation and resources

No documents available
