L717TWA7 Series

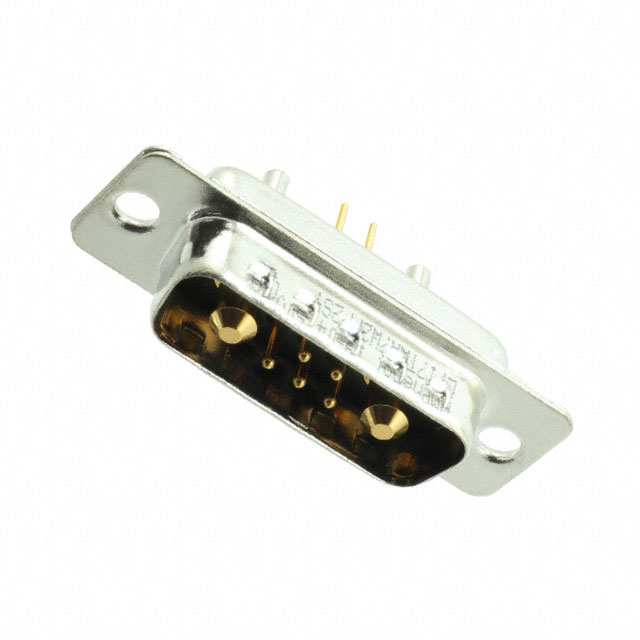

7 (5 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector

Technical Specifications

Parameters and characteristics for this part

Specification	L717TWA7W2PP2SY

Color	Black
Connector Layout	DA, A
Connector Style	Combo, D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	16 µin
Contact Form	Machined
Contact Material	Brass
Contact Type	Signal, Power
Current Rating	7.5 A
Dielectric Material	Thermoplastic
Features	Grounding Indents
Finish	Tin Plated
Flange Feature	Shell (Unthreaded), Housing
Mounting Type	Panel Mount, Through Hole
Number of Positions (Normal)	5
Number of Positions (Power)	2
Number of Positions (Total)	7
Number of Rows	2
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Part Code	7W2
Shell Material	Steel
Shell Size	2
Termination	Solder
Voltage Rating	300 VAC/DC

L717TWA7 Series

Part	Current Rating	Backset Spacing	Number of Positions (Total)	Number of Positions (Normal)	Number of Positions (Power)	Flange Feature	Connector Style	Contact Type	Termination	Contact Finish Thickness	Shell Size	Part Code	Connector Layout	Mounting Type	Contact Finish	Features	Number of Rows	Connector Type	Finish	Shell Material	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Contact Material	Color	Contact Form	Dielectric Material	Number of Positions (Standard)	Position Types	Number of Positions (Special)	Contact Finish Thickness (string set options)	Contact Finish Thickness	Material Flammability Rating
Amphenol ICC (Commercial Products) L717TWA7W2PMP3SVRM6	7.5 A	0.319 in	7	5	2	Housing Shell (Unthreaded)	Combo D-Sub	Power Signal	Solder	16 µin	2	7W2	A DA	Panel Mount Right Angle Through Hole	Gold	Board Lock Grounding Indents Mounting Brackets	2	Male Pins Plug	Tin Plated	Steel	155 °C	-55 °C	300 VAC/DC	Brass	Black	Machined	Thermoplastic
Amphenol ICC (Commercial Products) L717TWA7W2PMCSV		0.319 in	7			Housing Shell (Unthreaded)	Combo D-Sub	Coax Signal	Solder	16 µin	2	7W2	A DA	Panel Mount Right Angle Through Hole	Gold	Grounding Indents	2	Male Pins Plug	Tin Plated	Steel	155 °C	-55 °C	300 VAC/DC	Brass	Black	Machined	Thermoplastic	5	Coax	2
Amphenol ICC (Commercial Products) L717TWA7W2PSYRM84	7.5 A		7			Female Screwlock (4-40) Mating Side	Combo D-Sub	Coax or Power Signal	Solder	16 µin	2	7W2	A DA	Panel Mount Through Hole	Gold	Board Lock Grounding Indents	2	Male Pins Plug	Tin Plated	Steel	155 °C	-55 °C	300 VAC/DC	Brass	Black	Machined	Thermoplastic	5	Coax Power	2
Amphenol ICC (Commercial Products) L717TWA7W2PP2SY	7.5 A		7	5	2	Housing Shell (Unthreaded)	Combo D-Sub	Power Signal	Solder	16 µin	2	7W2	A DA	Panel Mount Through Hole	Gold	Grounding Indents	2	Male Pins Plug	Tin Plated	Steel	155 °C	-55 °C	300 VAC/DC	Brass	Black	Machined	Thermoplastic
Amphenol ICC (Commercial Products) L717TWA7W2PSY	7.5 A		7			Housing Shell (Unthreaded)	Combo D-Sub	Coax or Power Signal	Solder	16 µin	2	7W2	A DA	Panel Mount Through Hole	Gold	Grounding Indents	2	Male Pins Plug	Tin Plated	Steel	155 °C	-55 °C	300 VAC/DC	Brass	Black	Machined	Thermoplastic	5	Coax Power	2
Amphenol ICC (Commercial Products) L717TWA7W2PP3SYRM84	7.5 A		7	5	2	Female Screwlock (4-40) Mating Side	Combo D-Sub	Power Signal	Solder	16 µin	2	7W2	A DA	Panel Mount Through Hole	Gold	Board Lock Grounding Indents	2	Male Pins Plug	Tin Plated	Steel	155 °C	-55 °C	300 VAC/DC	Brass	Black	Machined	Thermoplastic
Amphenol ICC (Commercial Products) L717TWA7W2PMP3SV4FRM6	7.5 A	0.319 in	7	5	2	Female Screwlock (4-40) Mating Side	Combo D-Sub	Power Signal	Solder	16 µin	2	7W2	A DA	Panel Mount Right Angle Through Hole	Gold	Board Lock Grounding Indents Mounting Brackets	2	Male Pins Plug	Tin Plated	Steel	155 °C	-55 °C	300 VAC/DC	Brass	Black	Machined	Thermoplastic
Amphenol ICC (Commercial Products) L717TWA7W2PC817	7.5 A		7				Combo D-Sub	Coax or Power Signal		0	2	7W2	A DA		Gold	Grounding Indents	2	Male Pins Plug	Tin Plated	Steel	155 °C	-55 °C	300 VAC/DC	Brass	Black	Machined	Thermoplastic	5	Coax Power	2	Flash	Flash
Amphenol ICC (Commercial Products) L717TWA7W2P4RA165	7.5 A		7			Cable Side (4-40) Female Screwlock (4-40) Mating Side	Combo D-Sub	Coax or Power Signal	Solder Cup	16 µin	2	7W2	A DA	Panel Mount	Gold	Grounding Indents	2	Male Pins Plug	Tin Plated	Steel	155 °C	-55 °C	300 VAC/DC	Brass	Black	Machined	Glass Filled Thermoplastic	5	Coax Power	2			UL94 V-0
Amphenol ICC (Commercial Products) L717TWA7W2PP2SYRM84	7.5 A		7	5	2	Female Screwlock (4-40) Mating Side	Combo D-Sub	Power Signal	Solder	16 µin	2	7W2	A DA	Panel Mount Through Hole	Gold	Board Lock Grounding Indents	2	Male Pins Plug	Tin Plated	Steel	155 °C	-55 °C	300 VAC/DC	Brass	Black	Machined	Thermoplastic
