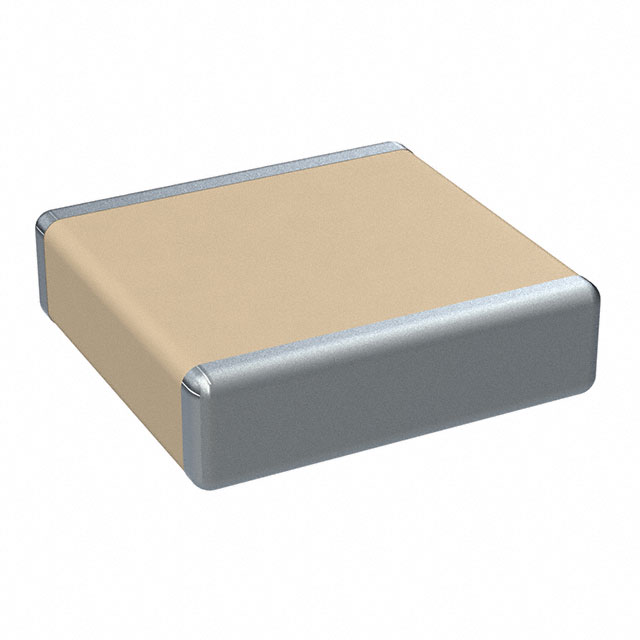

C2225C821JZGAC7800

Active

KEMET

CAP CER 820PF 2.5KV C0G/NP0 2225

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC2225C821JZGACTU Datasheet

C2225C821JZGAC7800

Active

KEMET

CAP CER 820PF 2.5KV C0G/NP0 2225

Deep-Dive with AI

DocumentsC2225C821JZGACTU Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C2225C821JZGAC7800

Applications	General Purpose
Capacitance	820 pF
Features	Low ESL, High Voltage
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	2225
Package / Case	5763 Metric
Size / Dimension [x]	5.6 mm
Size / Dimension [x]	0.22 in
Size / Dimension [y]	0.252 in
Size / Dimension [y]	6.4 mm
Temperature Coefficient	NP0, C0G
Thickness (Max)	1.8 mm
Thickness (Max) [Max]	0.071 "
Tolerance	5 %
Voltage - Rated	2.5 kV
Voltage - Rated	2.5 kV

C2225C Series

...

Part	Features	Voltage - Rated	Thickness (Max)	Thickness (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Applications	Package / Case	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Tolerance	Mounting Type	Capacitance	Voltage - Rated	Thickness (Max) [Max]	Thickness (Max) [Max] [custom]
KEMET C2225C153J2GAC7800	Low ESL	200 V	1.55 mm	0.061 in	0.252 in	5.6 mm	0.22 in	6.4 mm	General Purpose	2225	5763 Metric	-55 °C	125 °C	C0G NP0	5 %	MLCC Surface Mount	15000 pF
KEMET C2225C911GZGAC7800	High Voltage Low ESL	2.5 kV	1.8 mm	0.071 "	0.252 in	5.6 mm	0.22 in	6.4 mm	General Purpose	2225	5763 Metric	-55 °C	125 °C	C0G NP0	2 %	MLCC Surface Mount	910 pF	2.5 kV
KEMET C2225C392JGGAC7800	High Voltage Low ESL	2000 V		0.106 "	0.252 in	5.6 mm	0.22 in	6.4 mm	General Purpose	2225	5763 Metric	-55 °C	125 °C	C0G NP0	5 %	MLCC Surface Mount	3900 pF	2 kV	2.7 mm
KEMET C2225C273J1GAC7800	Low ESL	100 V	1.55 mm	0.061 in	0.252 in	5.6 mm	0.22 in	6.4 mm	General Purpose	2225	5763 Metric	-55 °C	125 °C	C0G NP0	5 %	MLCC Surface Mount	0.027 µF
KEMET C2225C393JCGAC7800	High Voltage Low ESL	500 V		0.106 "	0.252 in	5.6 mm	0.22 in	6.4 mm	General Purpose	2225	5763 Metric	-55 °C	125 °C	C0G NP0	5 %	MLCC Surface Mount	0.039 µF		2.7 mm
KEMET C2225C103J5GAL7800	Low ESL	50 VDC	1.55 mm	0.061 in	0.252 in	5.6 mm	0.22 in	6.4 mm	General Purpose	2225	5763 Metric	-55 °C	125 °C	C0G NP0	5 %	MLCC Surface Mount	10000 pF
KEMET C2225C471JHGAC7800	High Voltage Low ESL		1.8 mm	0.071 "	0.252 in	5.6 mm	0.22 in	6.4 mm	General Purpose	2225	5763 Metric	-55 °C	125 °C	C0G NP0	5 %	MLCC Surface Mount	470 pF
KEMET C2225C333F5GAL7800	Low ESL	50 VDC	1.55 mm	0.061 in	0.252 in	5.6 mm	0.22 in	6.4 mm	General Purpose	2225	5763 Metric	-55 °C	125 °C	C0G NP0	1 %	MLCC Surface Mount	0.033 çF
KEMET C2225C821JZGAC7800	High Voltage Low ESL	2.5 kV	1.8 mm	0.071 "	0.252 in	5.6 mm	0.22 in	6.4 mm	General Purpose	2225	5763 Metric	-55 °C	125 °C	C0G NP0	5 %	MLCC Surface Mount	820 pF	2.5 kV
KEMET C2225C105J1RAL7800		100 V	1.45 mm		0.252 in	5.6 mm	0.22 in	6.4 mm	Bypass Decoupling High Reliability	2225	5763 Metric	-55 °C	125 °C	X7R	5 %	MLCC Surface Mount	1 µF			0.057 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 6.82
	Digi-Reel®	1	$ 6.82
	Tape & Reel (TR)	1000	$ 3.67

Description

General part information

C2225C Series

820 pF ±5% 2500V (2.5kV) Ceramic Capacitor C0G, NP0 2225 (5763 Metric)
