76005WS 0081000
ActiveBelden Inc.

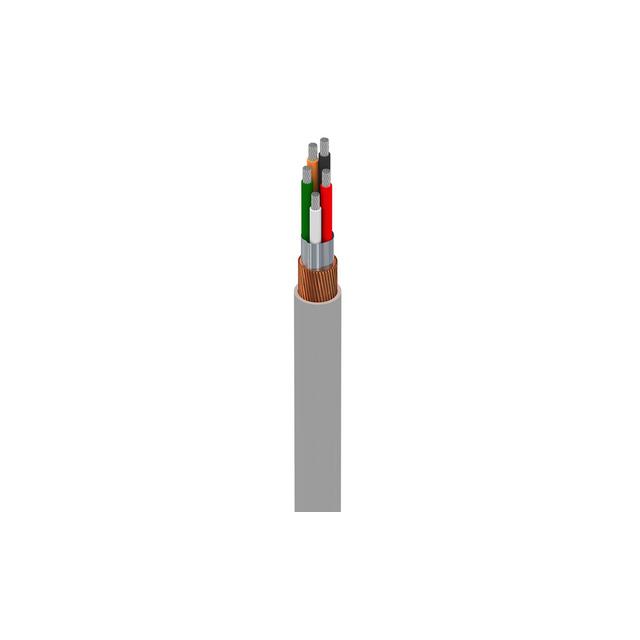

CABLE 5COND 28AWG CHRM SHD FEET
Deep-Dive with AI
Search across all available documentation for this part.
76005WS 0081000
ActiveBelden Inc.
CABLE 5COND 28AWG CHRM SHD FEET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 76005WS 0081000 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 36 AWG |
| Conductor Strand [custom] | 7 |
| Features | Oil Resistant |
| Jacket (Insulation) Diameter [diameter] | 0.2 in |
| Jacket (Insulation) Diameter [diameter] | 5.08 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.04 in |
| Jacket (Insulation) Thickness | 1.016 mm |
| Jacket Color | Chrome |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 5 |
| Shield Coverage | 90 %, 100 % |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Spiral |
| Spool Size | 1000 ft |
| Spool Size | 304.8 m |
| Voltage | 300 V |
| Wire Gauge | 28 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 1.61 | |
| 2 | $ 4.08 | |||
| 3 | $ 1.49 | |||
| 5 | $ 1.43 | |||
| 7 | $ 1.40 | |||
| 10 | $ 1.37 | |||
| 25 | $ 1.28 | |||
| 50 | $ 1.22 | |||
| 100 | $ 1.16 | |||
Description
General part information
76005WS Series
5 Conductor Multi-Conductor Cable Chrome 28 AWG Foil, Spiral Enter Number of Feet in Order Quantity
