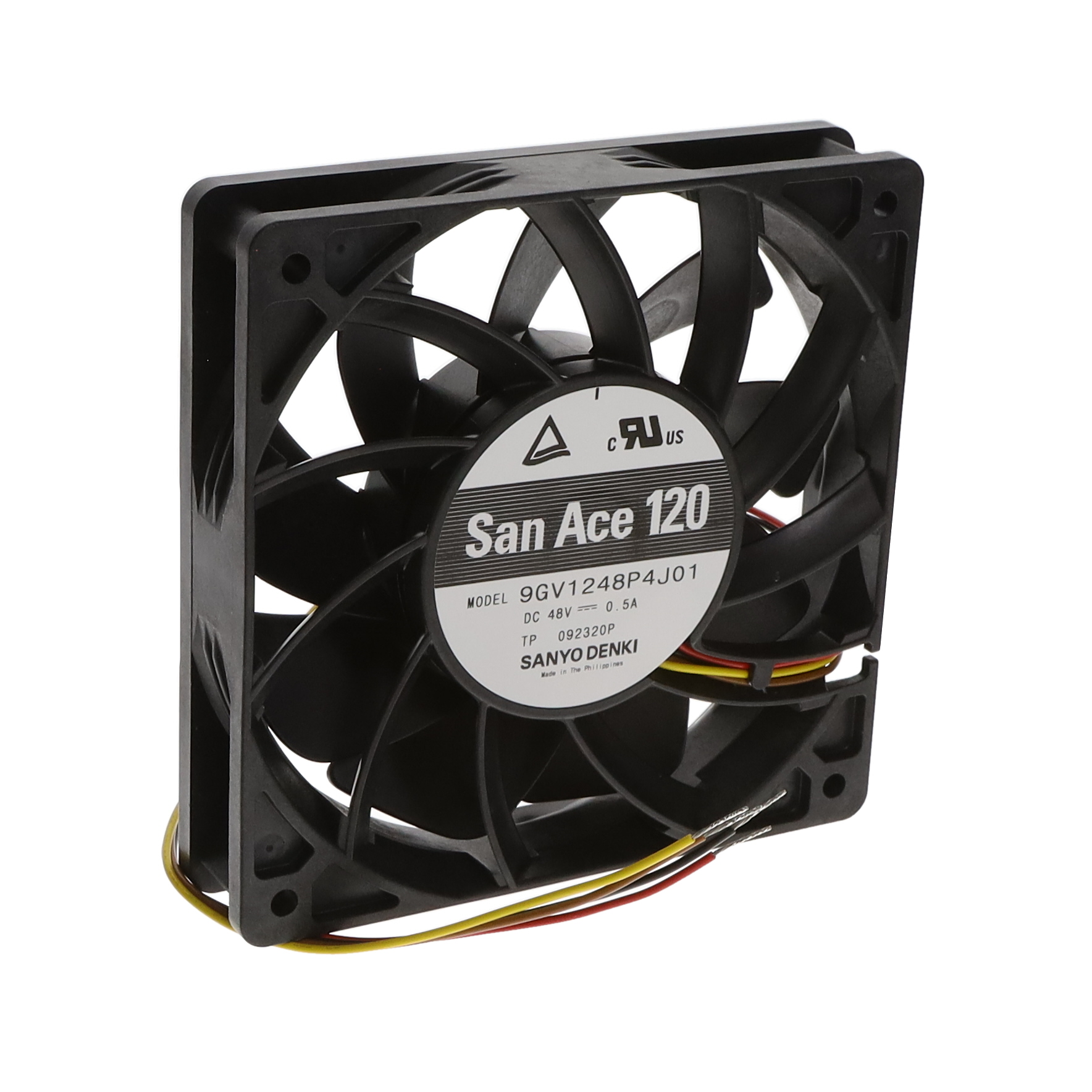

9GV1248P4J01

Active

Sanyo Denki America Inc.

FAN AXIAL 119X25.4MM 48VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumbering System DC Fan Rotor Balancing

9GV1248P4J01

Active

Sanyo Denki America Inc.

FAN AXIAL 119X25.4MM 48VDC WIRE

Deep-Dive with AI

DocumentsNumbering System DC Fan Rotor Balancing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9GV1248P4J01

Air Flow	5.04 mł/min
Air Flow	180 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.5 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	59 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	24 W
RPM	5400 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Static Pressure	1.015 in H2O
Static Pressure	252.8 Pa
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	55.2 VDC
Voltage Range [Min]	40.8 VDC
Width [y]	25.4 mm

9GV1248 Series

Part	Fan Type	Voltage Range [Max]	Voltage Range [Min]	Voltage - Rated [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Noise	Lifetime @ Temp.	Approval Agency	Features	Material - Frame	Static Pressure	Static Pressure	Power (Watts)	Material - Blade	Air Flow	Air Flow	Termination	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	Width [y]	Bearing Type	RPM	Weight [custom]	Weight [custom]
Sanyo Denki America Inc. 9GV1248G4011	Tubeaxial	60 V	40.8 VDC	48 VDC	-20 °C	70 °C	-20 C	70 °C	58 dB(A)	40000 Hrs	CSA TUV UL	Locked Rotor Protection Speed Sensor (Tach)	Plastic	0.9 in H2O	224.2 Pa	20.16 W	Plastic	171 CFM	4.79 m³/min	3 Wire Leads	120 mm	120 mm	0.42 A	25.4 mm	Ball	5100 RPM
Sanyo Denki America Inc. 9GV1248P4J01	Tubeaxial	55.2 VDC	40.8 VDC	48 VDC	-20 °C	70 °C	-20 C	70 °C	59 dB(A)	40000 Hrs	CSA TUV UL	PWM Control Speed Sensor (Tach)	Plastic	1.015 in H2O	252.8 Pa	24 W	Plastic	180 CFM	5.04 mł/min	4 Wire Leads	119 mm	119 mm	0.5 A	25.4 mm	Ball	5400 RPM
Sanyo Denki America Inc. 9GV1248P1J01	Tubeaxial	55.2 VDC	40.8 VDC	48 VDC	-20 °C	70 °C	-20 C	70 °C	64 dB(A)	40000 Hrs	CSA TUV UL	PWM Control Speed Sensor (Tach)	Plastic	1.45 in H2O	361.2 Pa	36 W	Plastic	224 CFM	6.27 mł/min	4 Wire Leads	120 mm	120 mm	75 mA	38 mm	Ball	6400 RPM	360.15 g	0.794 lb
Sanyo Denki America Inc. 9GV1248P4G01	Tubeaxial	60 V	40.8 VDC	48 VDC	-20 °C	70 °C	-20 C	70 °C	58 dB(A)	40000 Hrs	CSA TUV UL	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Plastic	0.09 in H2O	22.4 Pa	20.16 W	Plastic	170.9 CFM	4.79 m³/min	4 Wire Leads	120 mm	120 mm	0.42 A	25.4 mm	Ball	5100 RPM
Sanyo Denki America Inc. 9GV1248J101	Tubeaxial			48 VDC							CSA TUV UL	Speed Sensor (Tach)				36 W				3 Wire Leads	120 mm	120 mm		38 mm	Ball		360.15 g	0.794 lb
Sanyo Denki America Inc. 9GV1248P4H011	Tubeaxial	60 V	40.8 VDC	48 VDC	-20 °C	70 °C	-20 C	70 °C	55 dB	40000 Hrs	CSA TUV UL	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Plastic	0.73 in H2O	181.8 Pa	15.84 W	Plastic	154 CFM	4.31 m³/min	4 Wire Leads	120 mm	120 mm	0.33 A	25.4 mm	Ball	4600 RPM
Sanyo Denki America Inc. 9GV1248P4G011	Tubeaxial	60 V	40.8 VDC	48 VDC	-20 °C	70 °C	-20 C	70 °C	58 dB(A)	40000 Hrs	CSA TUV UL	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Plastic	0.9 in H2O	224.2 Pa	20.16 W	Plastic	171 CFM	4.79 m³/min	4 Wire Leads	120 mm	120 mm	0.42 A	25.4 mm	Ball	5100 RPM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 65.74
		10	$ 53.39
		30	$ 48.56

Description

General part information

9GV1248 Series

Fan Tubeaxial 48VDC Square - 119mm L x 119mm H Ball 180.0 CFM (5.04m³/min) 4 Wire Leads
