DW-18-14-L-D-1043

Active

Samtec Inc.

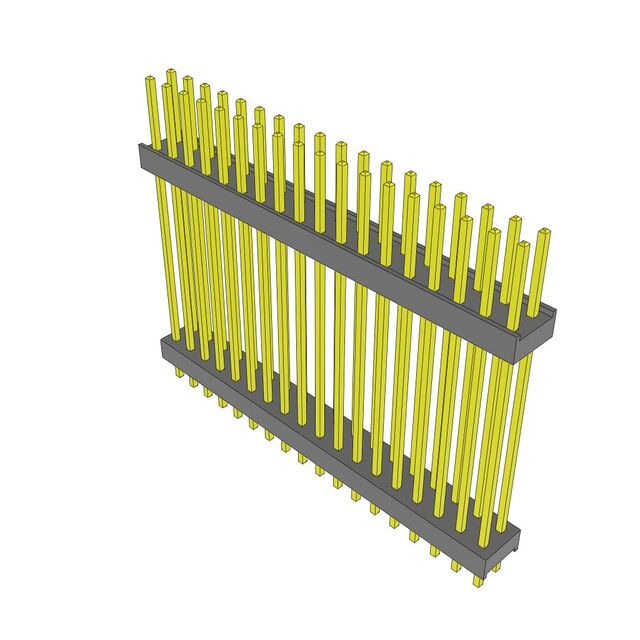

CONN BOARD STACKER HDR 36 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDW Datasheet Flexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch +2

DW-18-14-L-D-1043

Active

Samtec Inc.

CONN BOARD STACKER HDR 36 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

DocumentsDW Datasheet Flexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DW-18-14-L-D-1043

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	1.43 in
Length - Overall Pin [x]	36.322 mm
Length - Post (Mating) [x]	7.036 mm
Length - Post (Mating) [x]	0.277 in
Length - Stack Height [x]	26.492 mm
Length - Stack Height [x]	1.043 in
Length - Tail [x]	0.11 in
Length - Tail [x]	2.794 mm
Mounting Type	Through Hole
Number of Positions	36
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

DW-18-14 Series

Part	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Color	Row Spacing [x]	Row Spacing	Length - Stack Height [x]	Length - Stack Height [x]	Mounting Type	Contact Finish - Post (Mating)	Number of Positions	Termination	Length - Tail [x]	Length - Tail [x]	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. DW-18-14-L-D-1043	1.43 in	36.322 mm	7.036 mm	0.277 in	Black	0.1 in	2.54 mm	26.492 mm	1.043 in	Through Hole	Gold	36	Solder	0.11 in	2.794 mm	2	2.54 mm	0.1 in	0.25 Ám	10 Áin
Samtec Inc. DW-18-14-L-D-780	1.43 in	36.322 mm	13.716 mm	0.54 in	Black	0.1 in	2.54 mm			Through Hole	Gold	36	Solder	0.11 in	2.794 mm	2	2.54 mm	0.1 in	0.25 Ám	10 Áin	0.78 in	19.812 mm
Samtec Inc. DW-18-14-S-D-965	1.43 in	36.322 mm			Black	0.1 in	2.54 mm	24.511 mm	0.965 in	Through Hole	Gold	36	Solder	0.11 in	2.794 mm	2	2.54 mm	0.1 in	0.76 µm	30 µin
Samtec Inc. DW-18-14-T-D-1165	1.43 in	36.322 mm	3.937 mm	0.155 in	Black	0.1 in	2.54 mm	29.591 mm	1.165 in	Through Hole	Tin	36	Solder	0.11 in	2.794 mm	2	2.54 mm	0.1 in
Samtec Inc. DW-18-14-F-D-1105	1.43 in	36.322 mm	5.791 mm	0.215 in	Black	0.1 in	2.54 mm	28.067 mm	1.105 in	Through Hole	Gold	36	Solder	0.11 in	2.794 mm	2	2.54 mm	0.1 in	0.076 Ám	3 Áin
Samtec Inc. DW-18-14-T-D-1084	1.43 in	36.322 mm	5.994 mm	0.236 in	Black	0.1 in	2.54 mm	27.534 mm	1.084 in	Through Hole	Tin	36	Solder	0.11 in	2.794 mm	2	2.54 mm	0.1 in
Samtec Inc. DW-18-14-G-D-1000	1.43 in	36.322 mm	8.128 mm	0.32 in	Black	0.1 in	2.54 mm	25.4 mm	1 in	Through Hole	Gold	36	Solder	0.11 in	2.794 mm	2	2.54 mm	0.1 in	0.25 Ám	10 Áin
Samtec Inc. DW-18-14-L-S-1165	1.43 in	36.322 mm	3.937 mm	0.155 in	Black			29.591 mm	1.165 in	Through Hole	Gold	18	Solder	0.11 in	2.794 mm	1	2.54 mm	0.1 in	0.25 Ám	10 Áin
Samtec Inc. DW-18-14-T-S-1305	1.43 in	36.322 mm	0.381 mm	0.015 in	Black			33.147 mm	1.305 in	Through Hole	Tin	18	Solder	0.11 in	2.794 mm	1	2.54 mm	0.1 in
Samtec Inc. DW-18-14-G-D-700	1.43 in	36.322 mm	15.748 mm	0.62 in	Black	0.1 in	2.54 mm	17.78 mm	0.7 in	Through Hole	Gold	36	Solder	0.11 in	2.794 mm	2	2.54 mm	0.1 in	0.25 Ám	10 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 4.65
		25	$ 4.38
		50	$ 4.11
Digikey	Bulk	1	$ 8.34

Description

General part information

DW-18-14 Series

36 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole

Documents

Technical documentation and resources

DW Datasheet

Datasheet

Flexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch

XW Print

Datasheet
