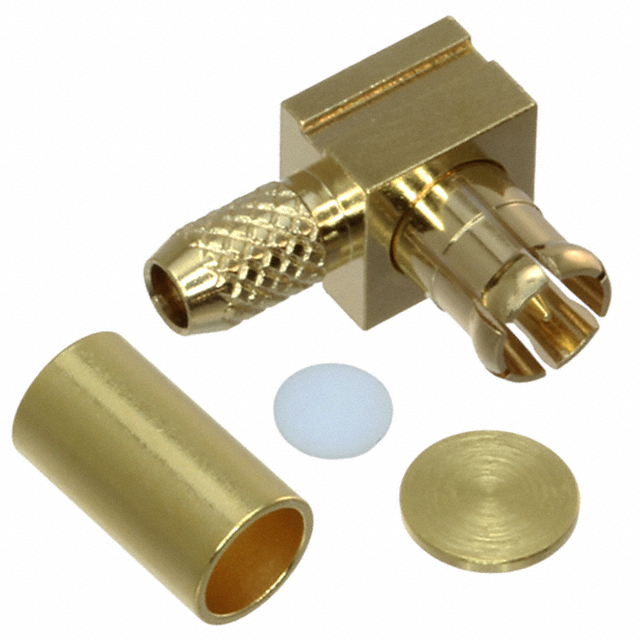

MCX7-P-C-H-RA-CA3

Active

Samtec Inc.

CONN MCX JACK R/A 75 OHM SOLDER

Search across all available documentation for this part.

Active

Samtec Inc.

CONN MCX JACK R/A 75 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	MCX7-P-C-H-RA-CA3

Body Finish	Gold
Body Material	Brass
Cable Group	RG-179
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4.5 GHz
Housing Color	Gold
Impedance	75 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	170 V

Part	Contact Termination	Fastening Type	Mounting Type	Dielectric Material	Frequency - Max [Max]	Number of Ports	Impedance	Voltage Rating	Cable Group	Shield Termination	Connector Style	Connector Type	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Body Material	Housing Color	Center Contact Plating
Samtec Inc. MCX7-P-C-H-RA-CA3	Solder	Snap-On	Free Hanging (In-Line) Right Angle	Polytetrafluoroethylene (PTFE)	4.5 GHz	1	75 Ohms	170 V	RG-179	Crimp	MCX	Male Pin Plug	Gold	125 °C	-65 ░C	Brass	Brass	Gold	Gold
Samtec Inc. MCX7-P-P-HN-ST-SM1	Solder	Snap-On	Surface Mount	Polytetrafluoroethylene (PTFE)	6000 MHz	1	75 Ohms	170 V		Solder	MCX	Male Pin Plug	Gold	125 °C	-65 ░C	Copper Alloy	Brass	Gold	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MCX Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line), Right Angle Solder
