RCBSR-6-01
ActiveEssentra Access Solutions

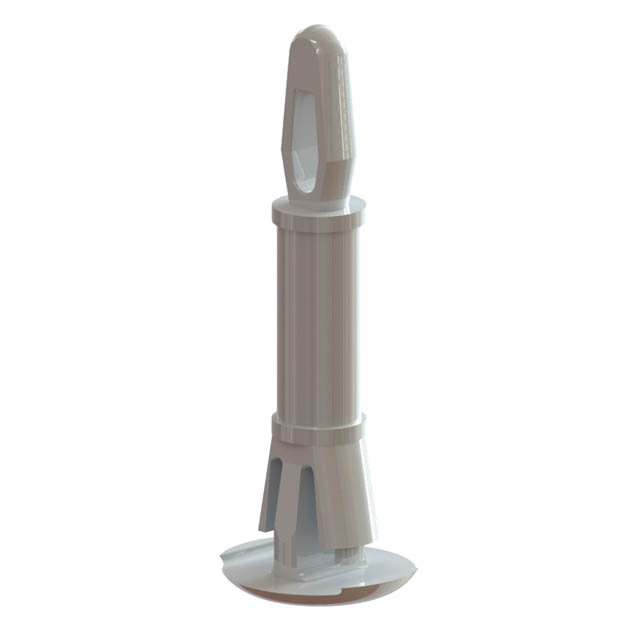

BRD SPT SNAP FIT/LOCK NYLON 3/8"
Deep-Dive with AI
Search across all available documentation for this part.
RCBSR-6-01
ActiveEssentra Access Solutions
BRD SPT SNAP FIT/LOCK NYLON 3/8"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RCBSR-6-01 |
|---|---|
| Between Board Height | 0.375 in |
| Between Board Height | 0.375 in |
| Between Board Height | 9.53 mm |
| Features | Locking, Reverse Mounting |
| Holding Type | Snap Fit |
| Length - Overall [x] | 0.839 " |
| Length - Overall [x] | 21.3 mm |
| Material | Nylon |
| Mounting Hole Diameter [diameter] | 0.187 in |
| Mounting Hole Diameter [diameter] | 4.75 mm |
| Mounting Hole Diameter [diameter] | 3 in |
| Mounting Panel Thickness [Max] | 0.063 in |
| Mounting Panel Thickness [Max] | 1.6 mm |
| Mounting Panel Thickness [Min] | 0.059 in |
| Mounting Panel Thickness [Min] | 1.5 mm |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 0.125 in |
| Support Hole Diameter [diameter] | 0.125 in |
| Support Hole Diameter [diameter] | 3.18 mm |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.40 | |
| 5 | $ 0.35 | |||
| 10 | $ 0.29 | |||
| 25 | $ 0.27 | |||
| 50 | $ 0.26 | |||
| 100 | $ 0.23 | |||
| 250 | $ 0.22 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.20 | |||
Description
General part information
RCBSR Series
Board Support Snap Fit / Snap Lock Nylon 0.375" (9.53mm) 3/8"
Documents
Technical documentation and resources
No documents available
