1-1337482-0

Active

TE Connectivity AMP Connectors

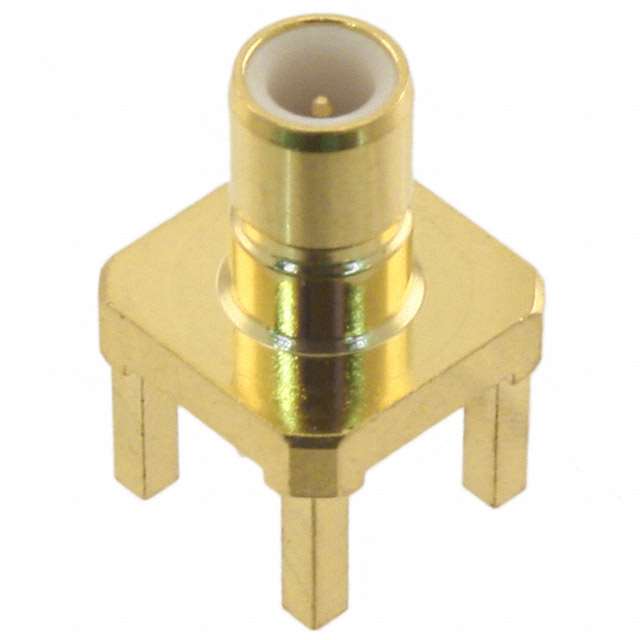

CONN SMB JACK STR 50 OHM PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SMB JACK STR 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	1-1337482-0

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	250 VDC

CONN SMB JACK STR 50 OHM PCB

Part	Voltage Rating	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Center Contact Plating	Housing Color	Impedance	Mounting Type	Center Contact Material	Dielectric Material	Insertion Loss	Contact Termination	Connector Type	Number of Ports	Shield Termination	Fastening Type	Connector Style	Frequency - Max [Max]	Mating Cycles
TE Connectivity AMP Connectors 1-1337482-0	250 VDC	Brass	-65 ░C	165 °C	Gold	Gold	Gold	50 Ohms	Through Hole	Brass	Polytetrafluoroethylene (PTFE)	0.3 dB	Solder	Jack, Male Pin	1	Solder	Snap-On	SMB	4 GHz	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMB Connector Jack, Male Pin 50 Ohms Through Hole Solder
