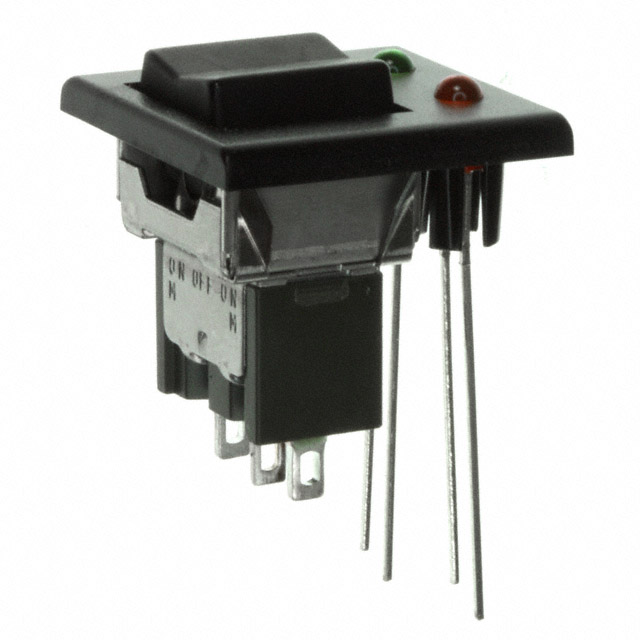

SWITCH ROCKER SPDT 6A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M2018TJW01-FA-3A-CF

Obsolete

NKK Switches

SWITCH ROCKER SPDT 6A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2018TJW01-FA-3A-CF

Actuator Marking	No Marking
Actuator Type	Concave (Standard V) - Illuminated
Approval Agency	CSA, UL
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	2.25 VDC, 2 VDC
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [x]	18.4 mm
Panel Cutout Dimensions [y]	15.9 mm
Switch Function	Mom-Off-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

M2018TJ Series

Part	Approval Agency	Circuit	Electrical Life	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination Style	Actuator Marking	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage Rating - AC	Features	Voltage Rating - DC	Actuator Type	Switch Function	Color - Actuator/Cap	Illumination Type, Color	Illumination Voltage (Nominal)
NKK Switches M2018TJG03	CSA UL	SPDT	50000 Cycles	15.9 mm	12.5 mm	PC Pin	Varies by Cap	Panel Mount Snap-In	-30 ░C	85 °C	0.4 VA	28 V	Epoxy Sealed Terminals	28 V	Actuator Arm Cap Required	Mom-Off-Mom
NKK Switches M2018TJG01-FA	CSA UL	SPDT	50000 Cycles	15.9 mm	12.5 mm	Solder Lug	No Marking	Panel Mount Snap-In	-30 ░C	85 °C	0.4 VA	28 V	Epoxy Sealed Terminals	28 V	Concave (Standard V)	Mom-Off-Mom	Black
NKK Switches M2018TJW03-FA-1A	CSA UL	SPDT	25000 Steps	15.9 mm	12.5 mm	PC Pin	No Marking	Panel Mount Snap-In	-30 ░C	85 °C	3 A 6 A	125 V	Epoxy Sealed Terminals	30 V	Concave (Standard V)	Mom-Off-Mom	Black
NKK Switches M2018TJW01-FA-3A-CF	CSA UL	SPDT	25000 Steps	18.4 mm	15.9 mm	Solder Lug	No Marking	Panel Mount Snap-In	-30 ░C	85 °C	3 A 6 A	125 V	Epoxy Sealed Terminals	30 V	Concave (Standard V) - Illuminated	Mom-Off-Mom	Black	Green/Red LED	2 VDC 2.25 VDC
NKK Switches M2018TJW01/U-FA-1A	CSA UL	SPDT	25000 Steps	15.9 mm	12.5 mm	Solder Lug	No Marking	Panel Mount Snap-In	-30 ░C	85 °C	6 A	125 V	Epoxy Sealed Terminals		Concave (Standard V)	Mom-Off-Mom	Black
NKK Switches M2018TJG01-FC-1A	CSA UL	SPDT	50000 Cycles	15.9 mm	12.5 mm	Solder Lug	No Marking	Panel Mount Snap-In	-30 ░C	85 °C	0.4 VA	28 V	Epoxy Sealed Terminals	28 V	Concave (Standard V)	Mom-Off-Mom	Red
NKK Switches M2018TJW01-GE-1A	CSA UL	SPDT	25000 Steps	15.9 mm	12.5 mm	Solder Lug	No Marking	Panel Mount Snap-In	-30 ░C	85 °C	3 A 6 A	125 V	Epoxy Sealed Terminals	30 V	Paddle	Mom-Off-Mom	Yellow
NKK Switches M2018TJW03-GB	CSA UL	SPDT	25000 Steps	15.9 mm	12.5 mm	PC Pin	No Marking	Panel Mount Snap-In	-30 ░C	85 °C	3 A 6 A	125 V	Epoxy Sealed Terminals	30 V	Paddle	Mom-Off-Mom	White
NKK Switches M2018TJG01-GA-2A-F	CSA UL	SPDT	50000 Cycles	15.9 mm	12.5 mm	Solder Lug	No Marking	Panel Mount Snap-In	-30 ░C	85 °C	0.4 VA	28 V	Epoxy Sealed Terminals	28 V	Paddle - Illuminated	Mom-Off-Mom	Black	Green LED	2.1 VDC
NKK Switches M2018TJG01-GG-1A	CSA UL	SPDT	50000 Cycles	15.9 mm	12.5 mm	Solder Lug	No Marking	Panel Mount Snap-In	-30 ░C	85 °C	0.4 VA	28 V	Epoxy Sealed Terminals	28 V	Paddle	Mom-Off-Mom	Blue
