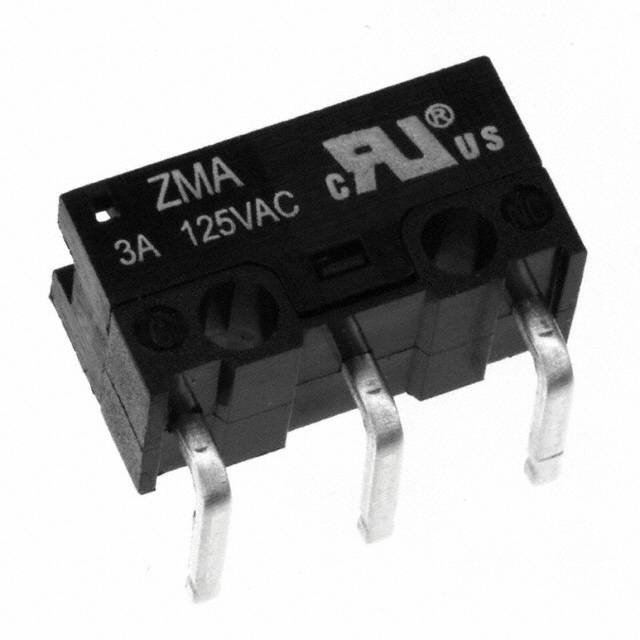

ZMA03A150L04PC

Active

LITTELFUSE

SWITCH SNAP ACTION N.O./N.C. SPDT STRAIGHT LEVER 3A 125VAC 24VDC 0.49N THRU-HOLE PC PINS BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ZMA03A150L04PC

Active

LITTELFUSE

SWITCH SNAP ACTION N.O./N.C. SPDT STRAIGHT LEVER 3A 125VAC 24VDC 0.49N THRU-HOLE PC PINS BULK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZMA03A150L04PC	ZMA03A150 Series

Actuator Type	Lever, Straight	Round (Pin Plunger), Lever, Straight, Simulated Roller, Lever
Circuit	SPDT	SPDT
Current Rating (Amps)	3 A	3 A
Electrical Life	10000 Cycles	10000 Cycles
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Through Hole	Through Hole, Right Angle, Through Hole
Operating Force	50 gf	49 - 150 gf
Operating Position	0.312 in	0.272 - 0.312 in
Operating Position	7.9 mm	6.9 - 7.9 mm
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	0.6 mm	0.2 - 1.25 mm
Overtravel	0.025 "	0.008 - 0.049 in
Pretravel	0.12 in	0.024 - 0.12 in
Pretravel	3 mm	0.6 - 3 mm
Release Force	8 gf	8 - 35 gf
Switch Function	On-Mom	On-Mom
Termination Style	PC Pin	PC Pin
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	24 V	24 V

ZMA03A150 Series

Mini Size Snap-acting Switches

Part	Voltage Rating - DC	Overtravel	Overtravel	Release Force	Voltage Rating - AC	Electrical Life	Pretravel	Pretravel	Mechanical Life	Mounting Type	Operating Force	Operating Position	Operating Position	Switch Function	Circuit	Actuator Type	Current Rating (Amps)	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]
LITTELFUSE ZMA03A150P00RC	24 V	0.2 mm	0.008 in	35 gf	125 V	10000 Cycles	0.024 in	0.6 mm	1000000 Cycles	Through Hole, Right Angle	150 gf	0.272 in	6.9 mm	On-Mom	SPDT	Round (Pin Plunger)	3 A	PC Pin	85 °C	-40 °C
LITTELFUSE ZMA03A150L04PC	24 V	0.6 mm	0.025 "	8 gf	125 V	10000 Cycles	0.12 in	3 mm	1000000 Cycles	Through Hole	50 gf	0.312 in	7.9 mm	On-Mom	SPDT	Lever, Straight	3 A	PC Pin	85 °C	-40 °C
LITTELFUSE ZMA03A150L04LC	24 V	0.6 mm	0.025 "	8 gf	125 V	10000 Cycles	0.12 in	3 mm	1000000 Cycles	Through Hole, Right Angle	50 gf	0.312 in	7.9 mm	On-Mom	SPDT	Lever, Straight	3 A	PC Pin	85 °C	-40 °C
LITTELFUSE ZMA03A150P00PC	24 V	0.2 mm	0.008 in	35 gf	125 V	10000 Cycles	0.024 in	0.6 mm	1000000 Cycles	Through Hole	150 gf	0.272 in	6.9 mm	On-Mom	SPDT	Round (Pin Plunger)	3 A	PC Pin	85 °C	-40 °C
LITTELFUSE ZMA03A150S06PC	24 V	1.25 mm	0.049 in	11 gf	125 V	10000 Cycles	0.055 in	1.4 mm	1000000 Cycles	Through Hole	49 gf			On-Mom	SPDT	Lever, Simulated Roller	3 A	PC Pin	85 °C	-40 °C
LITTELFUSE ZMA03A150P00LC	24 V	0.2 mm	0.008 in	35 gf	125 V	10000 Cycles	0.024 in	0.6 mm	1000000 Cycles	Through Hole, Right Angle	150 gf	0.272 in	6.9 mm	On-Mom	SPDT	Round (Pin Plunger)	3 A	PC Pin	85 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	71	$ 0.89
Digikey	Tray	1	$ 0.84
		10	$ 0.79
		25	$ 0.76
		40	$ 0.73
		100	$ 0.69
		300	$ 0.56

Description

General part information

ZMA03A150 Series

C&K’s ZMA series mini size snap-acting switches are often found used in PCB detection switches, communication devices and various types of testing equipment. Featuring a compact size (which is ideal when space is limited) and a reliable snap-acting mechanism, the ZMA series give applications a long electrical and mechanical life, ensuing they stand up to repeated use.
