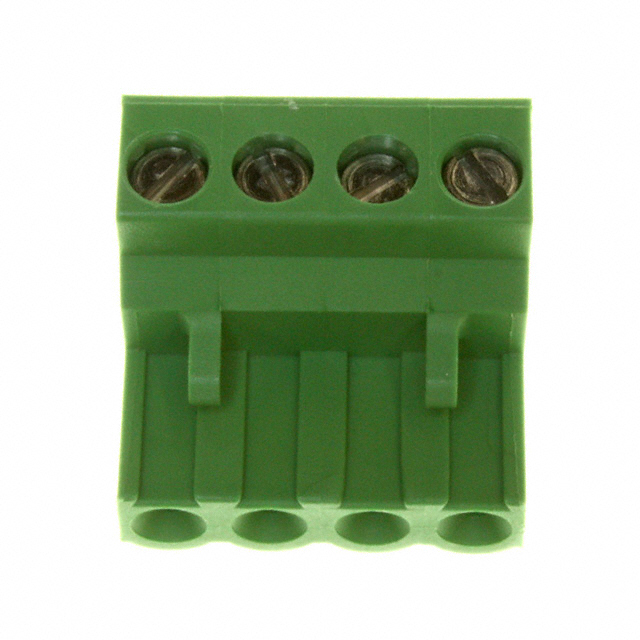

TERM BLOCK PLUG 4POS STR 5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

796640-4

Active

TE Connectivity AMP Connectors

TERM BLOCK PLUG 4POS STR 5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents
