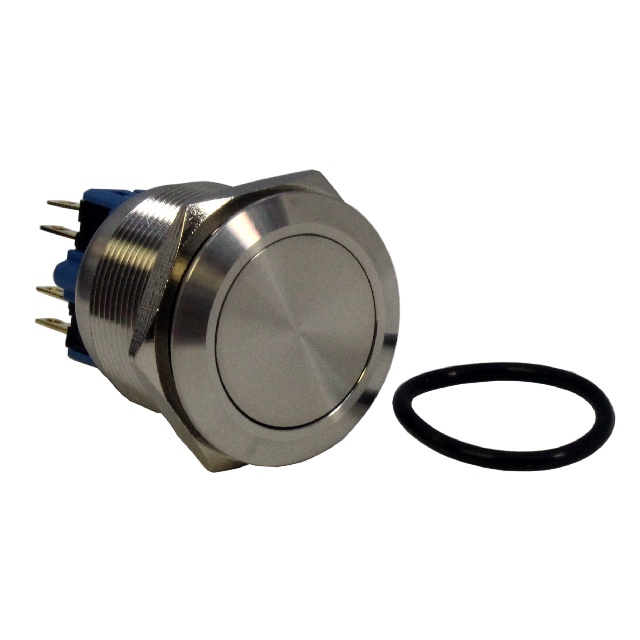

Specification	DH252LASZZ

Actuator Marking	No Marking
Actuator Type	Round, Flush, Button
Circuit	DPST-NO/NC, 4PST-2NO/2NC
Color - Actuator/Cap	Silver
Current Rating	2 A
Electrical Life (Cycles)	50000
Features	Stainless Steel
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Panel Cutout Diameter	25 mm
Panel Cutout Shape	Circular
Quick Connect Size (0.110")	0.11 in
Switch Function	On-Off, Off-On
Termination Style	Quick Connect, Solder
Type	Anti-Vandal
Voltage Rating - AC	125 V
Voltage Rating - DC	24 V

DH252 Series

Part	Color - Actuator/Cap	Panel Cutout Diameter	Panel Cutout Shape	Quick Connect Size (0.110")	Termination Style	Actuator Marking	Ingress Protection Description	Ingress Protection IP Rating	Features	Mounting Type	Actuator Type	Voltage Rating - AC	Type	Switch Function	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Voltage Rating - DC	Circuit	Electrical Life (Cycles)	Color	Illumination Type	Illumination Voltage (Nominal)
CIT Relay and Switch DH252LASZZ	Silver	25 mm	Circular	0.11 in	Quick Connect Solder	No Marking	Dust Tight Waterproof	IP67	Stainless Steel	Front Panel Mount	Button Flush Round	125 V	Anti-Vandal	Off-On On-Off	70 °C	-25 °C	2 A	24 V	4PST-2NO/2NC DPST-NO/NC	50000
CIT Relay and Switch DH252NBSRGN	Silver	25 mm	Circular	0.11 in	Quick Connect Solder	No Marking	Dust Tight Waterproof	IP67	Stainless Steel	Front Panel Mount	Button Flush Round	125 V	Anti-Vandal Illuminated	Off-Mom On-Mom	70 °C	-25 °C	2 A	24 V	4PST-2NO/2NC DPST-NO/NC	50000	Green Red	LED
CIT Relay and Switch DH252LBSBN	Silver	25 mm	Circular	0.11 in	Quick Connect Solder	No Marking	Dust Tight Waterproof	IP67	Stainless Steel	Front Panel Mount	Button Flush Round	125 V	Anti-Vandal Illuminated	Off-On On-Off	70 °C	-25 °C	2 A	24 V	DPST-NO/NC	50000	Blue	LED
CIT Relay and Switch DH252NBSG24	Silver	25 mm	Circular	0.11 in	Quick Connect Solder	No Marking	Dust Tight Waterproof	IP67	Stainless Steel	Front Panel Mount	Button Flush Round	125 V	Anti-Vandal Illuminated	Off-Mom On-Mom	70 °C	-25 °C	2 A 10 A	24 V	4PST-2NO/2NC DPST-NO/NC	50000	Green	LED	24 V
CIT Relay and Switch DH252LBBBN	Black	25 mm	Circular	0.11 in	Quick Connect Solder	No Marking	Dust Tight Waterproof	IP67		Front Panel Mount	Button Flush Round	125 V	Anti-Vandal Illuminated	Off-On On-Off	70 °C	-25 °C	2 A	24 V	DPST-NO/NC	50000	Blue	LED
CIT Relay and Switch DH252NBSGN	Silver	25 mm	Circular	0.11 in	Quick Connect Solder	No Marking	Dust Tight Waterproof	IP67	Stainless Steel	Front Panel Mount	Button Flush Round	125 V	Anti-Vandal Illuminated	Off-Mom On-Mom	70 °C	-25 °C	2 A	24 V	4PST-2NO/2NC DPST-NO/NC	50000	Green	LED
CIT Relay and Switch DH252NBSBN	Silver	25 mm	Circular	0.11 in	Quick Connect Solder	No Marking	Dust Tight Waterproof	IP67	Stainless Steel	Front Panel Mount	Button Flush Round	125 V	Anti-Vandal Illuminated	Off-Mom On-Mom	70 °C	-25 °C	2 A	24 V	4PST-2NO/2NC DPST-NO/NC	50000	Blue	LED
CIT Relay and Switch DH252NABZZ	Black	25 mm	Circular	0.11 in	Quick Connect Solder	No Marking	Dust Tight Waterproof	IP67		Front Panel Mount	Button Flush Round	125 V	Anti-Vandal	Off-Mom On-Mom	70 °C	-25 °C	2 A	24 V	4PST-2NO/2NC DPST-NO/NC	50000
CIT Relay and Switch DH252LBBRN	Black	25 mm	Circular	0.11 in	Quick Connect Solder	No Marking	Dust Tight Waterproof	IP67		Front Panel Mount	Button Flush Round	125 V	Anti-Vandal Illuminated	Off-On On-Off	70 °C	-25 °C	2 A	24 V	DPST-NO/NC	50000	Red	LED
CIT Relay and Switch DH252NBSR12	Silver	25 mm	Circular	0.11 in	Quick Connect Solder	No Marking	Dust Tight Waterproof	IP67	Stainless Steel	Front Panel Mount	Button Flush Round	125 V	Anti-Vandal Illuminated	Off-Mom On-Mom	70 °C	-25 °C	2 A	24 V	4PST-2NO/2NC DPST-NO/NC	50000	Red	LED	12 V
