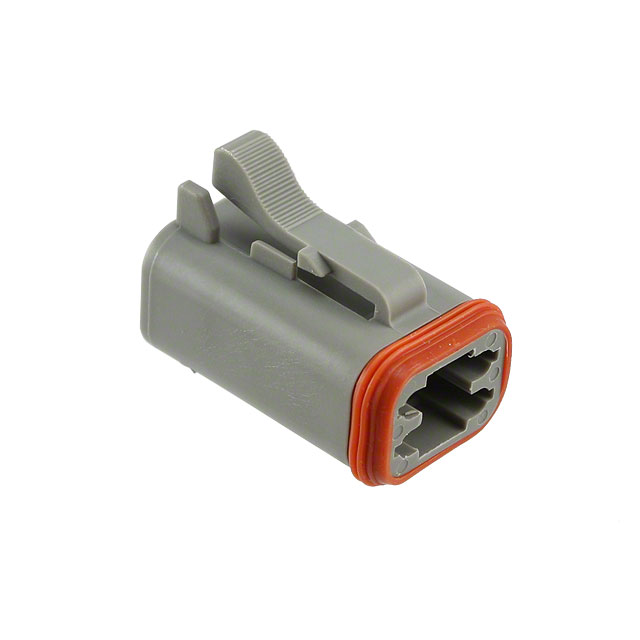

AT06-4S
ActiveAmphenol Sine Systems Corp
CONN PLUG HSG 4POS 14-20AWG
Deep-Dive with AI
Search across all available documentation for this part.
AT06-4S
ActiveAmphenol Sine Systems Corp
CONN PLUG HSG 4POS 14-20AWG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AT06-4S |
|---|---|
| Color | Gray |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Sealed |
| Insulation Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
AT06-4S Series
| Part | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Contact Type | Insulation Material | Contact Termination | Note | Number of Positions | Features | Color | Mounting Type | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | Latch Lock | -55 °C | 125 °C | Plug | Female Socket | Thermoplastic | Crimp | Contacts Not Included | 4 | Sealed | Blue | Free Hanging (In-Line) | 2 |
Amphenol Sine Systems Corp | Latch Lock | -55 °C | 125 °C | Plug | Female Socket | Polyamide (PA66) Nylon 6/6 Glass Filled | Crimp | Contacts Not Included | 4 | IP67 | Blue | Free Hanging (In-Line) | 2 |
Amphenol Sine Systems Corp | Latch Lock | -55 °C | 125 °C | Plug | Female Socket | Thermoplastic | Crimp | Contacts Not Included | 4 | Sealed | Gray | Free Hanging (In-Line) | 2 |
Amphenol Sine Systems Corp | Latch Lock | -55 °C | 125 °C | Plug | Female Socket | Thermoplastic | Crimp | 4 | Sealed | Free Hanging (In-Line) | 2 | ||
Amphenol Sine Systems Corp | Latch Lock | -55 °C | 125 °C | Plug | Female Socket | Polyamide (PA66) Nylon 6/6 Glass Filled | Crimp | 4 | Sealed | Yellow | Free Hanging (In-Line) | 2 | |
Amphenol Sine Systems Corp | Latch Lock | -55 °C | 125 °C | Plug | Female Socket | Thermoplastic | Crimp | Contacts Not Included | 4 | Strain Relief | Black | Free Hanging (In-Line) | 2 |
Amphenol Sine Systems Corp | Latch Lock | -55 °C | 125 °C | Plug | Female Socket | Thermoplastic | Crimp | Contacts Not Included | 4 | Sealed | Black | Free Hanging (In-Line) | 2 |
Amphenol Sine Systems Corp | Latch Lock | -55 °C | 125 °C | Plug | Female Socket | Thermoplastic | Crimp | Contacts Not Included | 4 | Sealed | Yellow | Free Hanging (In-Line) | 2 |
Amphenol Sine Systems Corp | Latch Lock | -55 °C | 125 °C | Plug | Female Socket | Thermoplastic | Crimp | Contacts Not Included | 4 | Cap (Cover) IP68 IP69K Sealed Strain Relief | Gray | Free Hanging (In-Line) | 2 |
Amphenol Sine Systems Corp | Latch Lock | -55 °C | 125 °C | Plug | Female Socket | Thermoplastic | Crimp | Contacts Not Included | 4 | Sealed | Red | Free Hanging (In-Line) | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.45 | |
| 10 | $ 1.26 | |||
| 25 | $ 1.20 | |||
| 50 | $ 1.18 | |||
| 100 | $ 1.12 | |||
| 250 | $ 1.02 | |||
| 500 | $ 0.94 | |||
| 1000 | $ 0.80 | |||
| 2500 | $ 0.75 | |||
Description
General part information
AT06-4S Series
4 Rectangular Connectors - Housings Plug Gray
