2700160
ActivePhoenix Contact

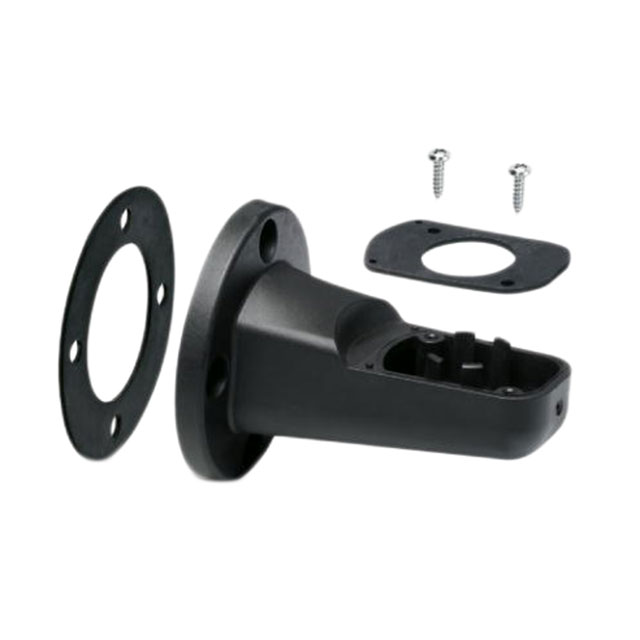

SINGLE SIDE MOUNTING BRACKET
Deep-Dive with AI
Search across all available documentation for this part.
2700160
ActivePhoenix Contact
SINGLE SIDE MOUNTING BRACKET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2700160 | 27001 Series |
|---|---|---|
| Features | - | Adjustable Volume, Magnetic Base, Automatic Volume Control, Integrated Tube |
| Function - Audible | - | Voice Output, Alternating, Continuous, Pulse, Multiple |
| Function - Lighting | - | Double Flashing, Flashing, Steady, Rotating |
| Ingress Protection | - | IP65 - Dust Tight, Water Resistant, IP40 |
| Lamp Type | - | Incandescent, Xenon, Not Included |
| Light Color | - | Yellow, Clear, Red, Green |
| Number of Stacks | - | 1 |
| Operating Temperature [Max] | 60 °C | 50 - 60 °C |
| Operating Temperature [Min] | -20 C | -30 - -20 C |
| Type | Mounting Bracket | Optical Element, Tube, Replacement End Cover, Mounting Base, Mounting Bracket, Acoustic Element, Outlet Box, Bulb, Mounting Adapter |
| Voltage - Supply | - | 24 VDC |
| Voltage - Supply | - | 240 VAC |
| Voltage - Supply | - | 12 VAC |
| Weight | 0.177 lb | 0.003 - 0.725 lb |
| Weight | 80.29 g | 1.36 - 328.85 g |
27001 Series
OPTICAL ELEMENT YLW DBL FLASH
| Part | Weight | Weight | Function - Lighting | Type | Number of Stacks | Light Color | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply | Ingress Protection | Features | Function - Audible | Lamp Type | Voltage - Supply [Max] | Voltage - Supply [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2700124 | 72.12 g | 0.159 lb | Double Flashing | Optical Element | 1 | Yellow | 50 °C | -20 C | 24 VDC | IP65 - Dust Tight, Water Resistant | |||||
Phoenix Contact 2700128 | 58.97 g | 0.13 lbs | Flashing | Optical Element | 1 | Clear | 50 °C | -20 C | 24 VAC | IP65 - Dust Tight, Water Resistant | |||||
Phoenix Contact 2700131 | 58.06 g | 0.128 lb | Steady | Optical Element | 1 | 50 °C | -20 C | 24 VAC | IP65 - Dust Tight, Water Resistant | ||||||
Phoenix Contact 2700157 | 73.03 g | 0.161 lb | Tube | 60 °C | -20 C | ||||||||||
Phoenix Contact 2700116 | Rotating | Optical Element | 1 | Red | 50 °C | -20 C | 24 VAC | IP65 - Dust Tight, Water Resistant | |||||||
Phoenix Contact 2700148 | 14.06 g | 0.031 lb | Replacement End Cover | 50 °C | -20 C | ||||||||||
Phoenix Contact 2700134 | 72.12 g | 0.159 lb | Double Flashing | Optical Element | 1 | 50 °C | -20 C | 24 VDC | IP65 - Dust Tight, Water Resistant | ||||||
Phoenix Contact 2700125 | Rotating | Optical Element | 1 | Yellow | 50 °C | -20 C | 24 VAC | IP65 - Dust Tight, Water Resistant | |||||||
Phoenix Contact 2700114 | 58.97 g | 0.13 lbs | Flashing | Optical Element | 1 | Red | 50 °C | -20 C | 24 VAC | IP65 - Dust Tight, Water Resistant | |||||
Phoenix Contact 2700164 | 328.85 g | 0.725 lb | Mounting Base |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.85 | |
Description
General part information
27001 Series
Stack Light Mounting Bracket
