5343-C-36

Active

Pomona Electronics

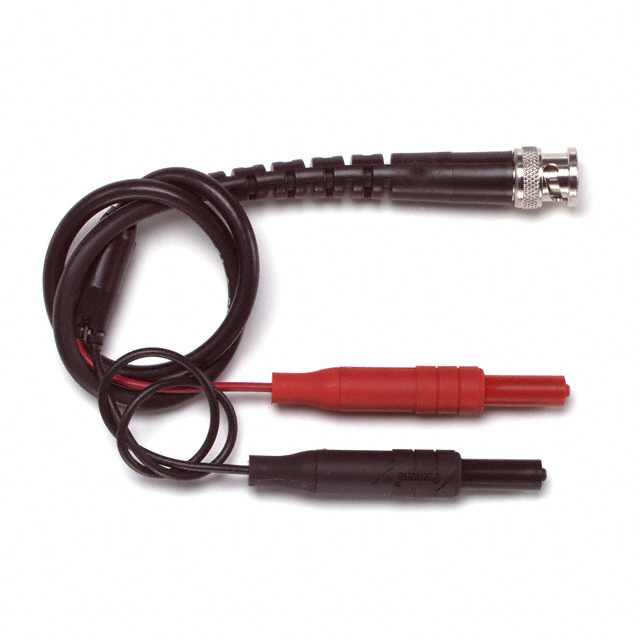

TEST LEAD BNC TO BANANA 36"

Search across all available documentation for this part.

Active

Pomona Electronics

TEST LEAD BNC TO BANANA 36"

Technical Specifications

Parameters and characteristics for this part

Specification	5343-C-36

1st Connector	BNC, Male Plug
2nd Connector	Banana Plug, Single, Sheathed - Retractable (2)
Cable Length	36 in
Cable Length	914.4 mm
Cable Type	RG-58C/U
Color	Black Cable, Black and Red Leads
Configuration	BNC to Banana
Material - Insulation	Poly-Vinyl Chloride (PVC)
Temperature Range	50 °C
Temperature Range	122 °F
Voltage - Rated [custom]	60 VDC, 30 VAC
Wire Gauge	20 AWG

Part	Voltage - Rated [custom]	Color	Temperature Range	Temperature Range	2nd Connector	1st Connector	Cable Length	Cable Length	Wire Gauge	Cable Type	Configuration	Material - Insulation
Pomona Electronics 5343-C-36	30 VAC 60 VDC	Black Cable Black and Red Leads	50 °C	122 °F	Banana Plug Single Sheathed - Retractable (2)	BNC Male Plug	36 in	914.4 mm	20 AWG	RG-58C/U	BNC to Banana	Poly-Vinyl Chloride (PVC)
Pomona Electronics 5343-C-60	30 VAC 60 VDC	Black Cable Black and Red Leads	50 °C	122 °F	Banana Plug Single Sheathed - Retractable (2)	BNC Male Plug	5 ft	1524 mm	20 AWG	RG-58C/U	BNC to Banana	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.29

General part information

36.0" (914.40mm) BNC, Male Plug To Banana Plug, Single, Sheathed - Retractable (2) Test Lead 30VAC, 60VDC
