IDSS-16-D-04.00

Active

Samtec Inc.

INSULATION DISPLACEMENT SOCKET C

Search across all available documentation for this part.

Active

Samtec Inc.

INSULATION DISPLACEMENT SOCKET C

Technical Specifications

Parameters and characteristics for this part

...

Part	Number of Positions	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Number of Rows	Connector Type	Shielding	Cable Termination	Contact Finish	Color	Length [x]	Length [x]	Length [x]
Samtec Inc. IDSS-16-D-05.50-G-R	16	0.1 in	2.54 mm	0.1 in	2.54 mm	1	Socket to Socket Reversed	Unshielded	IDC	Gold
Samtec Inc. IDSS-16-D-06.00-T-G	16	0.1 in	2.54 mm	0.1 in	2.54 mm	1	Socket to Socket	Unshielded	IDC	Tin
Samtec Inc. IDSS-16-S-04.72-ST8	16	0.1 in	2.54 mm	0.1 in	2.54 mm	1	Socket to Cable	Unshielded	IDC	Gold	Multiple Ribbon
Samtec Inc. IDSS-16-D-02.60	16	0.1 in	2.54 mm	0.1 in	2.54 mm	1	Socket to Socket	Unshielded	IDC	Gold	Multiple Ribbon
Samtec Inc. IDSS-16-S-07.00-ST4	16	0.1 in	2.54 mm	0.1 in	2.54 mm	1	Socket to Cable	Unshielded	IDC	Gold	Multiple Ribbon
Samtec Inc. IDSS-16-S-03.50-ST8	16	0.1 in	2.54 mm	0.1 in	2.54 mm	1	Socket to Cable	Unshielded	IDC	Gold	Multiple Ribbon
Samtec Inc. IDSS-16-D-04.00	16	0.1 in	2.54 mm	0.1 in	2.54 mm	1	Socket to Socket	Unshielded	IDC	Gold	Multiple Ribbon	4 "	0.333 ft	101.6 mm
Samtec Inc. IDSS-16-D-18.00	16	0.1 in	2.54 mm	0.1 in	2.54 mm	1	Socket to Socket	Unshielded	IDC	Gold	Multiple Ribbon
Samtec Inc. IDSS-16-D-06.00-T	16	0.1 in	2.54 mm	0.1 in	2.54 mm	1	Socket to Socket	Unshielded	IDC	Tin	Multiple Ribbon
Samtec Inc. IDSS-16-S-07.00-T-ST2	16	0.1 in	2.54 mm	0.1 in	2.54 mm	1	Socket to Cable	Unshielded	IDC	Tin	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

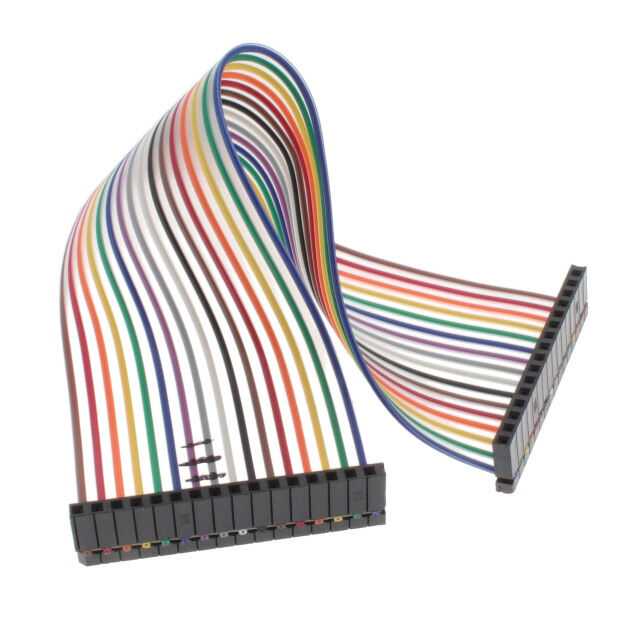

16 Position Cable Assembly Rectangular Socket to Socket 0.333' (101.60mm, 4.00")
