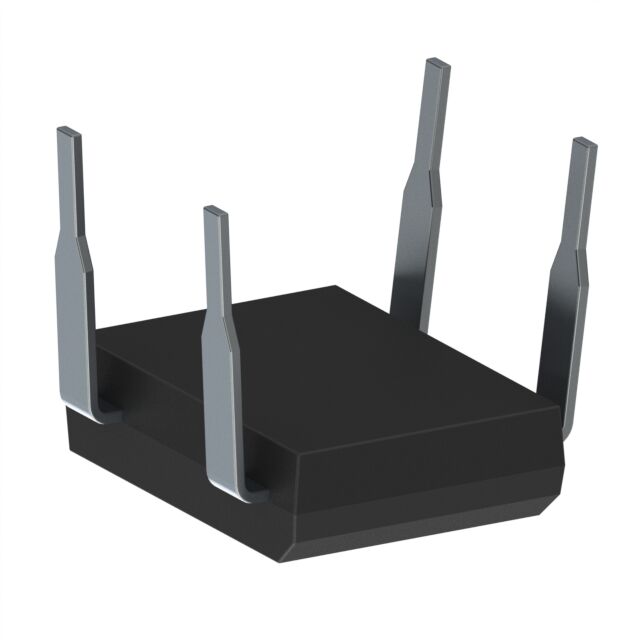

DB153

Active

SMC Diode Solutions

BRIDGE RECT 1P 200V 1.5A DB-M

Search across all available documentation for this part.

Active

SMC Diode Solutions

BRIDGE RECT 1P 200V 1.5A DB-M

Technical Specifications

Parameters and characteristics for this part

Specification	DB153

Current - Average Rectified (Io)	1.5 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-EDIP
Package / Case	0.321 in
Package / Case	8.15 mm
Supplier Device Package	DB-M
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	200 V

Part	Voltage - Peak Reverse (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Package / Case	Supplier Device Package	Diode Type	Current - Reverse Leakage @ Vr	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Package / Case	Package / Case
SMC Diode Solutions DB153S	200 V	1.1 V	1.5 A	4-SMD Gull Wing	DB-S	Single Phase	5 µA	Surface Mount	-55 °C	150 °C	Standard
SMC Diode Solutions DB153	200 V	1.1 V	1.5 A	4-EDIP	DB-M	Single Phase	5 µA	Through Hole	-55 °C	150 °C	Standard	0.321 in	8.15 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2500	$ 0.10

General part information

Bridge Rectifier Single Phase Standard 200 V Through Hole DB-M
