EN2P5F26P
ActiveSwitchcraft Inc.

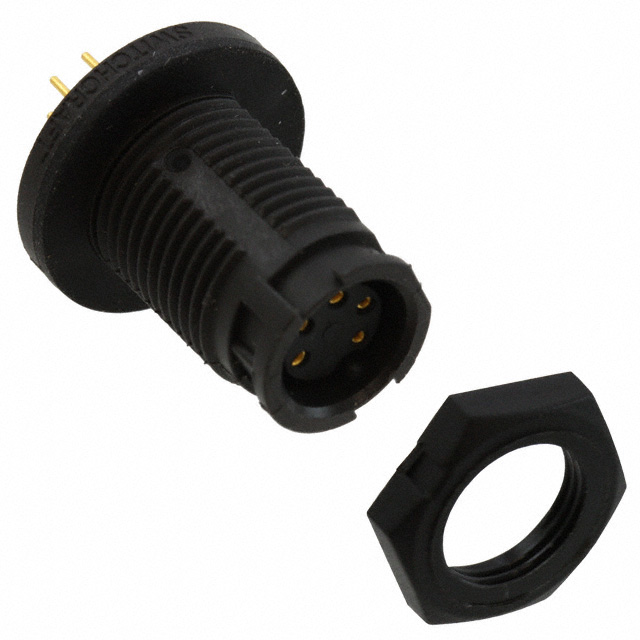

CONN RCPT FMALE 5POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN2P5F26P
ActiveSwitchcraft Inc.
CONN RCPT FMALE 5POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN2P5F26P | EN2P5F Series |
|---|---|---|
| Applications | Marine, Communication Systems, Medical, Industrial | Marine, Communication Systems, Medical, Industrial |
| Color | Black | Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | IP68, IP66, IP67 | IP68, IP66, IP67 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Solder | Crimp, Solder Cup, Solder |
| Voltage Rating | 125 VAC | 125 VAC |
EN2P5F Series
CONN RCPT FMALE 5POS GOLD CRIMP
| Part | Connector Type | Mounting Feature | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Orientation | Contact Material | Applications | Ingress Protection | Contact Finish - Mating | Fastening Type | Shielding | Voltage Rating | Insert Material | Color | Primary Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN2P5F26 | Receptacle, Female Sockets | Bulkhead - Front Side Nut | UL94 V-0 | 85 °C | -40 °C | Crimp, Solder Cup | Keyed | Copper Alloy | Communication Systems, Industrial, Marine, Medical | IP66, IP67, IP68 | Gold | Bayonet Lock | Unshielded | 125 VAC | Elastomer | Black | Plastic | |
Switchcraft Inc. EN2P5F26P | Receptacle, Female Sockets | Bulkhead - Front Side Nut | UL94 V-0 | 85 °C | -40 °C | Solder | Keyed | Copper Alloy | Communication Systems, Industrial, Marine, Medical | IP66, IP67, IP68 | Gold | Bayonet Lock | Unshielded | 125 VAC | Elastomer | Black | Plastic | Panel Mount, Through Hole |
