AB-FO024AM-02012-XA1
ActiveAmerican Bright Optoelectronics Corporation

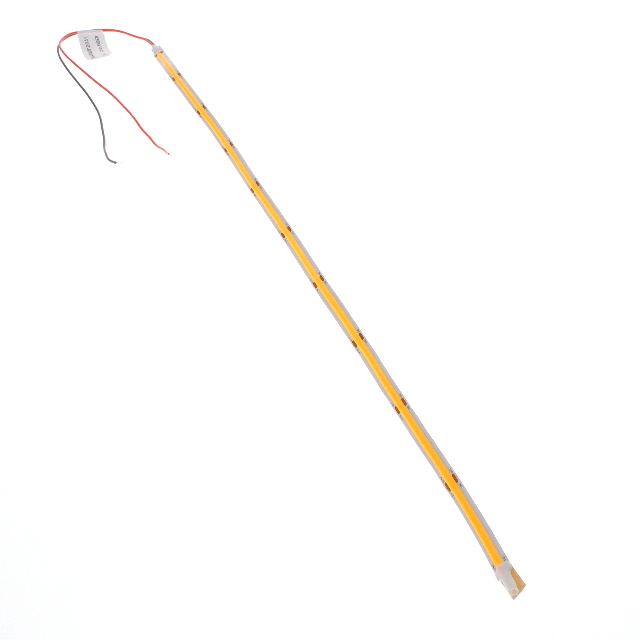

LED COB AB-FO AMBER LNR STRIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AB-FO024AM-02012-XA1
ActiveAmerican Bright Optoelectronics Corporation
LED COB AB-FO AMBER LNR STRIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AB-FO024AM-02012-XA1 | AB-FO024 Series |
|---|---|---|
| CCT (K) | - | 2700 K |
| Color | Amber | Green, Amber, White, Warm |
| Configuration | Linear Light Strip, Flexible | Linear Light Strip, Flexible |
| CRI (Color Rendering Index) | - | 90 |
| Current - Max [Max] | 250 mA | 250 mA |
| Current - Test | 250 mA | 250 mA |
| Features | IP65 | IP65 |
| Height [z] | 2.2 mm | 2.2 mm |
| Lens Type | Flat | Flat |
| Lumens/Watt @ Current - Test | 100 lm/W | 54 - 100 lm/W |
| Luminous Flux @ Current/Temperature | 335 lm | 335 - 600 lm |
| Type | Chip On Board (COB) | Chip On Board (COB) |
| Viewing Angle | 150 ° | 150 ° |
| Voltage - Forward (Vf) (Typ) | 24 V | 24 V |
| Wavelength | 525 nm | 525 - 590 nm |
AB-FO024 Series
LED COB AB-FO GREEN LNR STRIP
| Part | Lumens/Watt @ Current - Test | Height [z] | Type | Color | Luminous Flux @ Current/Temperature | Lens Type | Viewing Angle | Wavelength | Voltage - Forward (Vf) (Typ) | Current - Test | Configuration | Features | Current - Max [Max] | CCT (K) | CRI (Color Rendering Index) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
American Bright Optoelectronics Corporation AB-FO024GN-02012-XA1 | 54 lm/W | 2.2 mm | Chip On Board (COB) | Green | 600 lm | Flat | 150 ° | 590 nm | 24 V | 250 mA | Flexible, Linear Light Strip | IP65 | 250 mA | ||
American Bright Optoelectronics Corporation AB-FO024AM-02012-XA1 | 100 lm/W | 2.2 mm | Chip On Board (COB) | Amber | 335 lm | Flat | 150 ° | 525 nm | 24 V | 250 mA | Flexible, Linear Light Strip | IP65 | 250 mA | ||
American Bright Optoelectronics Corporation AB-FO02427-02012-9A1 | 70 lm/W | 2.2 mm | Chip On Board (COB) | Warm, White | 447 lm | Flat | 150 ° | 24 V | 250 mA | Flexible, Linear Light Strip | IP65 | 250 mA | 2700 K | 90 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 18.28 | |
| 10 | $ 13.79 | |||
| 100 | $ 11.58 | |||
| 500 | $ 10.64 | |||
Description
General part information
AB-FO024 Series
LED Lighting COBs Engines Modules Chip On Board (COB) AB-FO Amber Linear Light Strip, Flexible
