Q-0J02W00050.5M

Active

Amphenol Custom Cable

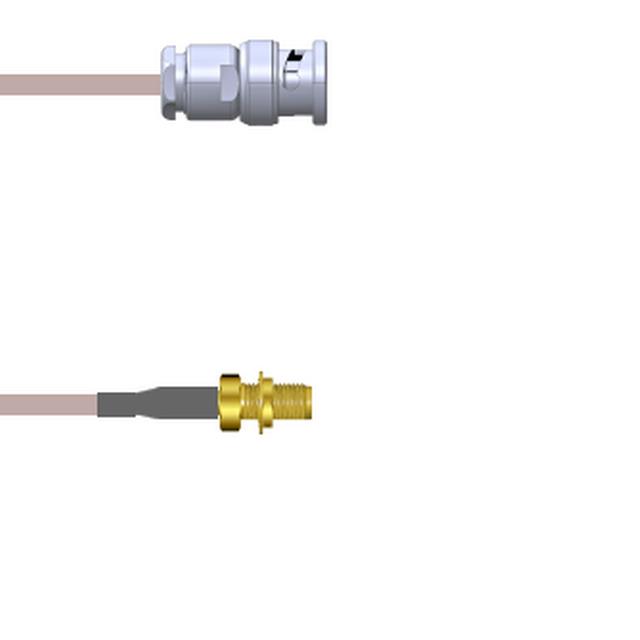

CBL ASSY BNC-SMA PLG-JACK 19.69"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0J02W00050.5M

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA PLG-JACK 19.69"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0J02W00050.5M

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-0J02W0 Series

Part	Features	Frequency - Max [Max]	2nd Connector Mounting Type	1st Contact Gender	Length	Length	2nd Connector	1st Connector Mounting Type	1st Connector	2nd Connector Mounting Feature	Cable Type	Overall Impedance	Color	Style	2nd Contact Gender	Length
Amphenol Custom Cable Q-0J02W00050.5M	Shielded	4 GHz	Panel Mount	Male	50 cm	19.69 "	SMA Jack	Free Hanging (In-Line)	BNC Plug	Bulkhead - Front Side Nut	RG-316	50 Ohms	Copper	BNC to SMA	Female
Amphenol Custom Cable Q-0J02W00030.5M	Shielded	4 GHz	Panel Mount	Male	50 cm	19.69 "	SMA Jack	Free Hanging (In-Line)	BNC Plug	Bulkhead - Front Side Nut	RG-174	50 Ohms	Black	BNC to SMA	Female
Amphenol Custom Cable Q-0J02W0003003M	Shielded	4 GHz	Panel Mount	Male	3 m	118.1 in	SMA Jack	Free Hanging (In-Line)	BNC Plug	Bulkhead - Front Side Nut	RG-174	50 Ohms	Black	BNC to SMA	Female	9.8 '
Amphenol Custom Cable Q-0J02W0005003i	Shielded	4 GHz	Panel Mount	Male	76.2 mm	3 in	SMA Jack	Free Hanging (In-Line)	BNC Plug	Bulkhead - Front Side Nut	RG-316	50 Ohms	Copper	BNC to SMA	Female
Amphenol Custom Cable Q-0J02W0003108i	Shielded	4 GHz	Panel Mount	Male	2.7 m	108 in	SMA Jack	Free Hanging (In-Line)	BNC Plug	Bulkhead - Front Side Nut	RG-174	50 Ohms	Black	BNC to SMA	Female	9 ft
Amphenol Custom Cable Q-0J02W0003012i	Shielded	4 GHz	Panel Mount	Male	304.8 mm	12 "	SMA Jack	Free Hanging (In-Line)	BNC Plug	Bulkhead - Front Side Nut	RG-174	50 Ohms	Black	BNC to SMA	Female
Amphenol Custom Cable Q-0J02W00031.5M	Shielded	4 GHz	Panel Mount	Male	1.5 m	59.1 in	SMA Jack	Free Hanging (In-Line)	BNC Plug	Bulkhead - Front Side Nut	RG-174	50 Ohms	Black	BNC to SMA	Female	4.9 ft
Amphenol Custom Cable Q-0J02W0003006i	Shielded	4 GHz	Panel Mount	Male	152.4 mm	6 in	SMA Jack	Free Hanging (In-Line)	BNC Plug	Bulkhead - Front Side Nut	RG-174	50 Ohms	Black	BNC to SMA	Female
Amphenol Custom Cable Q-0J02W0005009i	Shielded	4 GHz	Panel Mount	Male	228.6 mm	9 "	SMA Jack	Free Hanging (In-Line)	BNC Plug	Bulkhead - Front Side Nut	RG-316	50 Ohms	Copper	BNC to SMA	Female
Amphenol Custom Cable Q-0J02W0005036i	Shielded	4 GHz	Panel Mount	Male	91.44 cm	36 in	SMA Jack	Free Hanging (In-Line)	BNC Plug	Bulkhead - Front Side Nut	RG-316	50 Ohms	Copper	BNC to SMA	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 92.71
		25	$ 90.90
		50	$ 89.09
		100	$ 87.28
		250	$ 85.47

Description

General part information

Q-0J02W0 Series

Cable Assembly Coaxial BNC to SMA RG-316 19.69" (500.00mm)

Documents

Technical documentation and resources

No documents available
