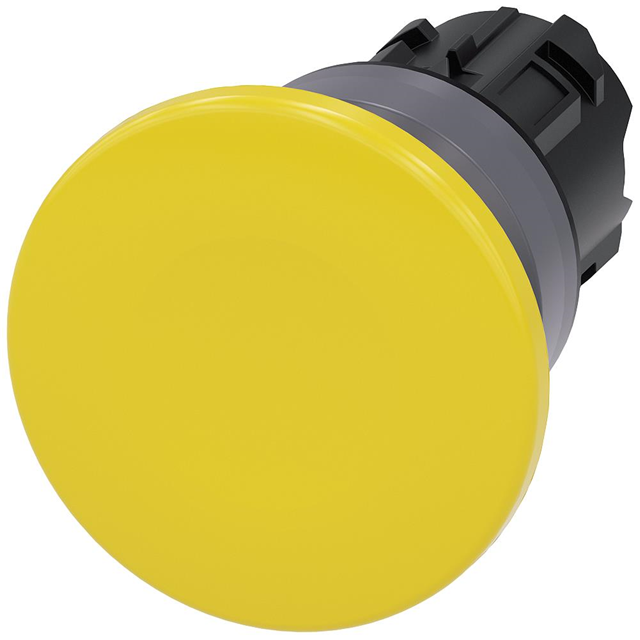

SWITCH ACTUATORS PUSHBUTTON, MOM, YEL, MH CAP O40MM

MFG_3SU10301BD300AA0

3SU10301BD300AA0

Active

SWITCH ACTUATORS PUSHBUTTON, MOM, YEL, MH CAP O40MM

Description Specifications Series Pricing CAD Documents

Description

General part information

3SU1 Series

Configurable Switch Body Pushbutton, Mushroom Non-Illuminated

Technical Specifications

Parameters and characteristics for this part

Specification	3SU10301BD300AA0

Actuator Type	Mushroom, Pushbutton
Compatible Series	Siemens
Compatible Series Dimension	22 mm
Illumination	Non-Illuminated
Panel Cutout Dimension	22.3 mm
Panel Cutout Shape	Round
Requires	Contact Block(s)
Type	Momentary
