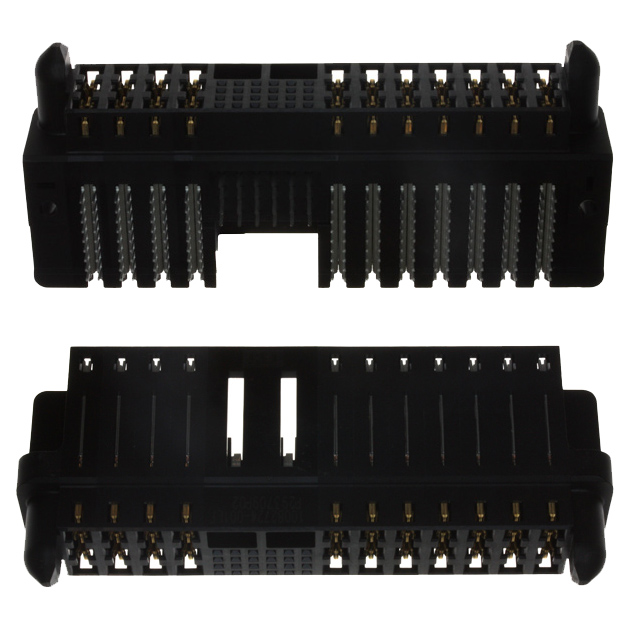

10082724-001LF

Active

Amphenol ICC (FCI)

CONN RCPT BLADE PWR 35POS PCB

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RCPT BLADE PWR 35POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	10082724-001LF

Color	Black
Connector Style	Blade Power
Connector Type	Blade Sockets, Receptacle, Female Sockets
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Layout, Typical [custom]	11
Contact Layout, Typical [custom]	24
Features	Guide Pin
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	35
Number of Positions Loaded	All
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Termination	Solder

Part	Connector Style	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Features	Termination	Number of Positions Loaded	Number of Positions	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Color	Mounting Type
Amphenol ICC (FCI) 10082724-001LF	Blade Power	11	24	UL94 V-0	-65 ░C	105 ░C	Guide Pin	Solder	All	35	Blade Sockets Female Sockets Receptacle	0.76 Ám	30 Áin	Black	Through Hole Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

35 Connector Receptacle, Female Sockets and Blade Sockets Through Hole, Right Angle Black Blade Power
