CF881-15-02
ActiveIgus
PVC 2C/16AWG CONTROL 300V FEET
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

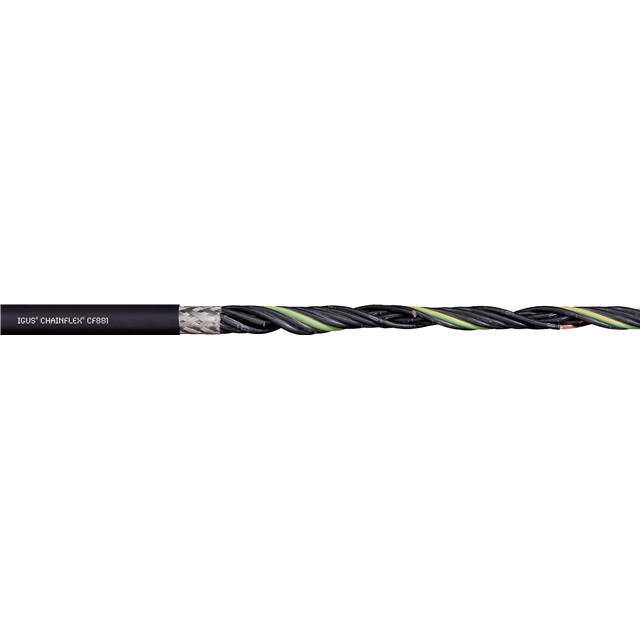

CF881-15-02
ActiveIgus
PVC 2C/16AWG CONTROL 300V FEET
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CF881-15-02 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Features | Flame Retardant |
| Jacket (Insulation) Diameter [diameter] | 8.51 mm |
| Jacket (Insulation) Diameter [diameter] | 0.335 " |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 2 |
| Ratings | UL Style 2464 |
| Shield Coverage | 60 % |
| Shield Material | Copper, Tinned |
| Shield Type | Braid |
| Spool Size | 1000 ft |
| Spool Size | 304.8 m |
| Voltage | 300 V |
| Wire Gauge | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 3.31 | |
| 3 | $ 3.07 | |||
| 5 | $ 2.96 | |||
| 7 | $ 2.89 | |||
| 10 | $ 2.82 | |||
| 25 | $ 2.65 | |||
| 50 | $ 2.51 | |||
| 100 | $ 2.39 | |||
Description
General part information
CF881 Series
2 Conductor Multi-Conductor Cable Black 16 AWG Braid Enter Number of Feet in Order Quantity
Documents
Technical documentation and resources
