Q-0D02I0005036i

Active

Amphenol Custom Cable

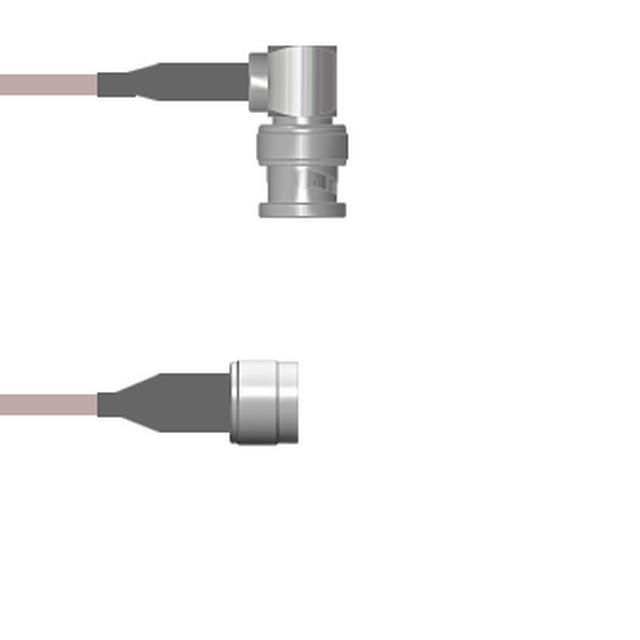

CBL ASSY BNC-NTYPE PLUG-PLUG 36"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0D02I0005036i

Active

Amphenol Custom Cable

CBL ASSY BNC-NTYPE PLUG-PLUG 36"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0D02I0005036i

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	91.44 cm
Length	36 in
Overall Impedance	50 Ohms
Style	BNC to N-Type

Q-0D02I0 Series

Part	Overall Impedance	Style	Color	1st Contact Gender	2nd Contact Gender	2nd Connector	Features	Length [x]	Length [x]	1st Connector Mounting Type	Cable Type	Frequency - Max [Max]	2nd Connector Mounting Type	1st Connector	Length [x]	Length	Length	Length
Amphenol Custom Cable Q-0D02I0005.25M	50 Ohms	BNC to N-Type	Copper	Male	Male	N-Type Plug	Shielded	9.843 "	250 mm	Free Hanging (In-Line)	RG-316	4 GHz	Free Hanging (In-Line)	BNC Plug Right Angle
Amphenol Custom Cable Q-0D02I0005018i	50 Ohms	BNC to N-Type	Copper	Male	Male	N-Type Plug	Shielded		457.2 mm	Free Hanging (In-Line)	RG-316	4 GHz	Free Hanging (In-Line)	BNC Plug Right Angle	457.2 mm
Amphenol Custom Cable Q-0D02I0005.75M	50 Ohms	BNC to N-Type	Copper	Male	Male	N-Type Plug	Shielded			Free Hanging (In-Line)	RG-316	4 GHz	Free Hanging (In-Line)	BNC Plug Right Angle		29.53 "	750 mm
Amphenol Custom Cable Q-0D02I0005072i	50 Ohms	BNC to N-Type	Copper	Male	Male	N-Type Plug	Shielded			Free Hanging (In-Line)	RG-316	4 GHz	Free Hanging (In-Line)	BNC Plug Right Angle		72 in	1.8 m	6 ft
Amphenol Custom Cable Q-0D02I0003003M	50 Ohms	BNC to N-Type	Black	Male	Male	N-Type Plug	Shielded			Free Hanging (In-Line)	RG-174	4 GHz	Free Hanging (In-Line)	BNC Plug Right Angle		118.1 in	3 m	9.8 '
Amphenol Custom Cable Q-0D02I0005024i	50 Ohms	BNC to N-Type	Copper	Male	Male	N-Type Plug	Shielded			Free Hanging (In-Line)	RG-316	4 GHz	Free Hanging (In-Line)	BNC Plug Right Angle		24 "	609.6 mm
Amphenol Custom Cable Q-0D02I0005036i	50 Ohms	BNC to N-Type	Copper	Male	Male	N-Type Plug	Shielded			Free Hanging (In-Line)	RG-316	4 GHz	Free Hanging (In-Line)	BNC Plug Right Angle		36 in	91.44 cm
Amphenol Custom Cable Q-0D02I0003018i	50 Ohms	BNC to N-Type	Black	Male	Male	N-Type Plug	Shielded		457.2 mm	Free Hanging (In-Line)	RG-174	4 GHz	Free Hanging (In-Line)	BNC Plug Right Angle	457.2 mm
Amphenol Custom Cable Q-0D02I0005002M	50 Ohms	BNC to N-Type	Copper	Male	Male	N-Type Plug	Shielded			Free Hanging (In-Line)	RG-316	4 GHz	Free Hanging (In-Line)	BNC Plug Right Angle		78.7 in	2 m	6.6 ft
Amphenol Custom Cable Q-0D02I00051.5M	50 Ohms	BNC to N-Type	Copper	Male	Male	N-Type Plug	Shielded			Free Hanging (In-Line)	RG-316	4 GHz	Free Hanging (In-Line)	BNC Plug Right Angle		59.1 in	1.5 m	4.9 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 107.68
		25	$ 105.57
		50	$ 103.47
		100	$ 101.36
		250	$ 99.25

Description

General part information

Q-0D02I0 Series

Cable Assembly Coaxial BNC to N-Type RG-316 36.00" (914.40mm)

Documents

Technical documentation and resources

No documents available
