AAA3MZH

Active

Switchcraft Inc.

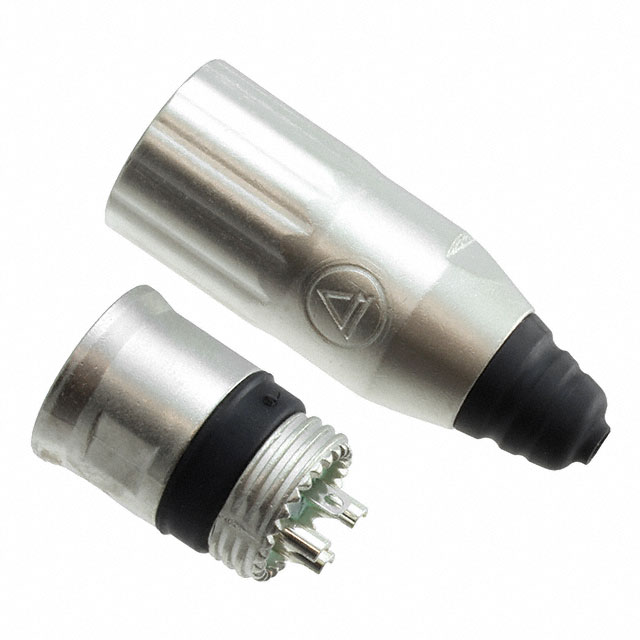

CONN RCPT MALE XLR 3P SOLDER CUP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE XLR 3P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	AAA3MZH

Applications	Audio, Instrumentation
Backshell Material, Plating	Nickel, Zinc Alloy
Cable Opening [Max] [diameter]	7.24 mm
Cable Opening [Max] [diameter]	0.285 in
Cable Opening [Min] [diameter]	0.15 in
Cable Opening [Min] [diameter]	3.81 mm
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Fastening Type	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp
Ingress Protection	IP66
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	XLR
Shielding	Shielded

CONN RCPT MALE XLR 3P SOLDER CUP

Part	Contact Finish - Mating	Ingress Protection	Features	Shell Size - Insert	Insert Material	Shell Material	Contact Material	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Fastening Type	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Shell Finish	Color	Orientation	Mounting Type	Applications	Backshell Material, Plating	Connector Type	Primary Material
Switchcraft Inc. AAA3MZH	Silver	IP66	Backshell, Cable Clamp, Ground, Strain Relief	XLR	Thermoplastic	Zinc Alloy	Copper Alloy	0.15 in	3.81 mm	7.24 mm	0.285 in	Latch Lock	Shielded	65 °C	-40 °C	Nickel	Silver	Keyed	Free Hanging (In-Line)	Audio, Instrumentation	Nickel, Zinc Alloy	Male Pins, Receptacle	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Male Pins Solder Cup
