0463-0-15-15-21-27-04-0

Active

Mill-Max Manufacturing Corp.

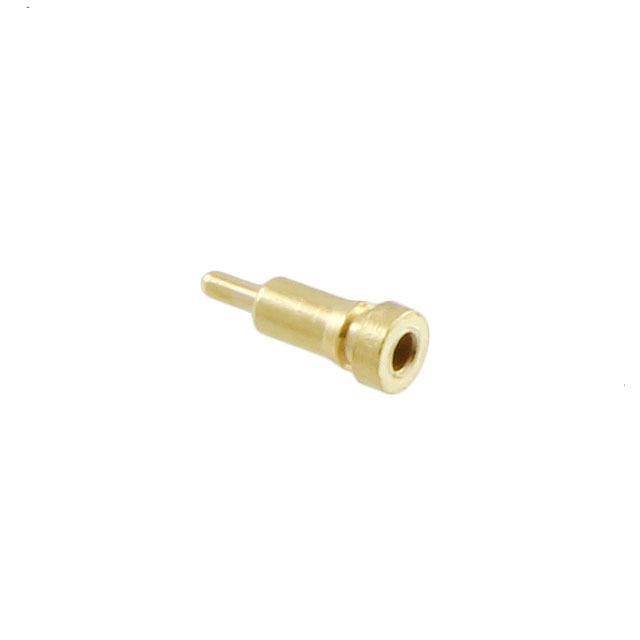

CONN PIN RCPT .015-.022 PRESSFIT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0463-0-15-15-21-27-04-0

Accepts Pin Diameter [Max]	0.022 in
Accepts Pin Diameter [Max]	0.56 mm
Accepts Pin Diameter [Min]	0.38 mm
Accepts Pin Diameter [Min]	0.015 "
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.4 mm
Flange Diameter [diameter]	0.055 in
Length - Overall [x]	0.156 in
Length - Overall [x]	3.96 mm
Mounting Hole Diameter [diameter]	1.09 mm
Mounting Hole Diameter [diameter]	0.043 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.79 mm
Pin Hole Diameter [diameter]	0.031 in
Socket Depth	0.093 in
Socket Depth	2.36 mm
Tail Diameter [diameter]	0.02 in
Tail Diameter [diameter]	0.51 mm
Tail Type	Standard Tail
Termination	Press-Fit

0463-0 Series

Part	Contact Finish	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Length - Overall [x]	Length - Overall [x]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Tail Diameter [diameter]	Tail Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Tail Type	Socket Depth	Socket Depth	Operating Temperature [Min]	Operating Temperature [Max]
Mill-Max Manufacturing Corp. 0463-0-15-80-21-27-04-0	Gold	0.38 mm	0.022 in	0.015 "	0.56 mm	1.4 mm	0.055 in	Beryllium Copper	0.76 Ám	30 Áin	0.156 in	3.96 mm	0.79 mm	0.031 in	0.02 in	0.51 mm	1.09 mm	0.043 in	Press-Fit	Standard Tail	0.093 in	2.36 mm	-55 °C	125 °C
Mill-Max Manufacturing Corp. 0463-0-15-15-21-27-04-0	Gold	0.38 mm	0.022 in	0.015 "	0.56 mm	1.4 mm	0.055 in	Beryllium Copper	0.76 Ám	30 Áin	0.156 in	3.96 mm	0.79 mm	0.031 in	0.02 in	0.51 mm	1.09 mm	0.043 in	Press-Fit	Standard Tail	0.093 in	2.36 mm	-55 °C	125 °C
Mill-Max Manufacturing Corp. 0463-0-15-01-21-27-04-0	Gold	0.38 mm	0.022 in	0.015 "	0.56 mm	1.4 mm	0.055 in	Beryllium Copper	0.76 Ám	30 Áin	0.156 in	3.96 mm	0.79 mm	0.031 in	0.02 in	0.51 mm	1.09 mm	0.043 in	Press-Fit	Standard Tail	0.093 in	2.36 mm	-55 °C	125 °C
Mill-Max Manufacturing Corp. 0463-0-15-15-21-14-04-0	Gold	0.38 mm	0.022 in	0.015 "	0.56 mm	1.4 mm	0.055 in	Beryllium Copper	0.25 Ám	10 Áin	0.156 in	3.96 mm	0.79 mm	0.031 in	0.02 in	0.51 mm	1.09 mm	0.043 in	Press-Fit	Standard Tail	0.093 in	2.36 mm	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.45
		10	$ 0.38
		25	$ 0.34
		50	$ 0.31
		100	$ 0.30
		250	$ 0.27
		500	$ 0.25
		1000	$ 0.21
		2500	$ 0.19

Description

General part information

0463-0 Series

Pin Receptacle Connector 0.015" ~ 0.022" (0.38mm ~ 0.56mm) Standard Tail Press-Fit
