84-5130.0040

Active

EAO

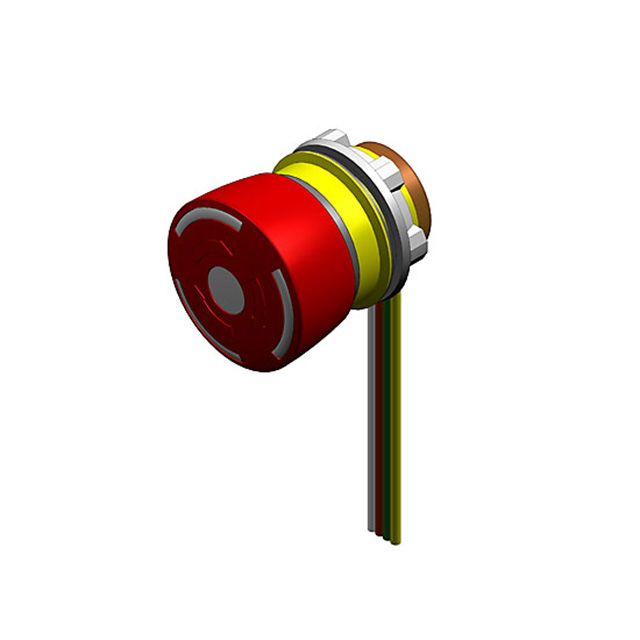

SWITCH ESTOP TWIST RESET 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH ESTOP TWIST RESET 5A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	84-5130.0040	84-5130 Series

Circuit	DPST-NO/NC	DPST-NO/NC
Current Rating (Amps)	5 A	5 A
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm	22.3 mm
Reset Operation	Twist	Twist
Switch Function	On-Off, Off-On	On-Off, Off-On
Termination Style	Cable Leads	Cable Leads, Quick Connect - 0.110" (2.8mm)
Voltage Rating - AC	250 V	250 V
Voltage Rating - DC	250 V	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

SWITCH ESTOP TWIST RESET 5A 250V

Part	Reset Operation	Termination Style	Mounting Type	Voltage Rating - AC	Circuit	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Ingress Protection	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC
EAO 84-5130.0040	Twist	Cable Leads	Panel Mount, Front	250 V	DPST-NO/NC	22.3 mm	5 A	IP65 - Dust Tight, Water Resistant	Off-On, On-Off	65 °C	-25 °C	250 V
EAO 84-5130.0020	Twist	Quick Connect - 0.110" (2.8mm)	Panel Mount, Front	250 V	DPST-NO/NC	22.3 mm	5 A	IP65 - Dust Tight, Water Resistant	Off-On, On-Off	65 °C	-25 °C	250 V

General part information

SWITCH ESTOP TWIST RESET 5A 250V
