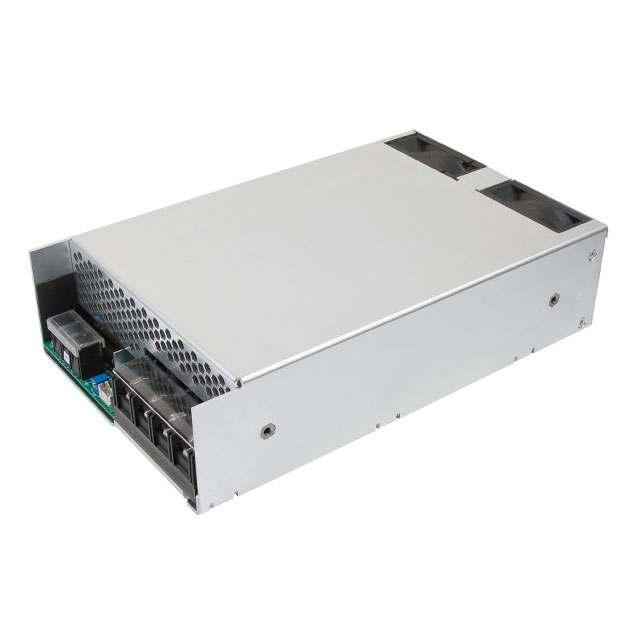

MHP1000PS15

Active

XP POWER

AC/DC CONVERTER 15V 1000W

Search across all available documentation for this part.

Active

XP POWER

AC/DC CONVERTER 15V 1000W

Technical Specifications

Parameters and characteristics for this part

Specification	MHP1000PS15

Applications	Medical
Approval Agency	CB
Current - Output 1	67 A
Efficiency	85 %
Features	Load Sharing, PFC, Adjustable Output, Remote On/Off, Universal Input, Remote Sense, Standby Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	1 kW
Size / Dimension [x]	9.55 "
Size / Dimension [x]	242.6 mm
Size / Dimension [y]	149.8 mm
Size / Dimension [y]	5.9 "
Size / Dimension [z]	61 mm
Size / Dimension [z]	2.4 in
Type	Enclosed
Voltage - Isolation	4000 V
Voltage - Output 1	15 V

Part	Efficiency	Voltage - Output 1	Voltage - Isolation	Type	Number of Outputs	Applications	Power (Watts)	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Features	Current - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Current - Output 1 [custom]
XP POWER MHP1000PS15	85 %	15 V	4000 V	Enclosed	1	Medical	1 kW	CB	-20 °C	70 °C	Chassis Mount	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	67 A	9.55 "	61 mm	242.6 mm	149.8 mm	2.4 in	5.9 "
XP POWER MHP1000PS12	85 %	12 V	4000 V	Enclosed	1	Medical	1 kW	CB	-20 °C	70 °C	Chassis Mount	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input		9.55 "	61 mm	242.6 mm	149.8 mm	2.4 in	5.9 "	83 A
XP POWER MHP1000PS36	85 %	36 V	4000 V	Enclosed	1	Medical	1 kW	CB	-20 °C	70 °C	Chassis Mount	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input		9.55 "	61 mm	242.6 mm	149.8 mm	2.4 in	5.9 "	28 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 788.63
