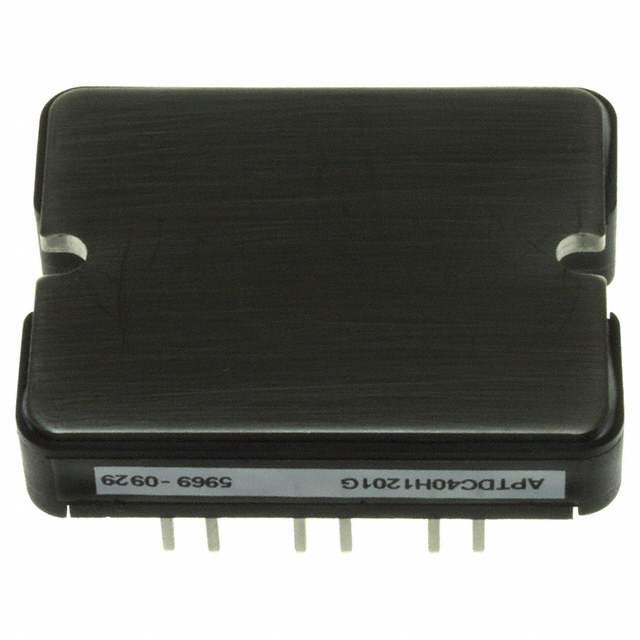

APTDC40H1201G

Active

Microsemi Corporation

BRIDGE RECT 1PHASE 1.2KV 40A SP1

Search across all available documentation for this part.

Active

Microsemi Corporation

BRIDGE RECT 1PHASE 1.2KV 40A SP1

Technical Specifications

Parameters and characteristics for this part

Specification	APTDC40H1201G

Current - Average Rectified (Io)	40 A
Current - Reverse Leakage @ Vr	800 µA
Diode Type	Single Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C
Package / Case	SP1
Supplier Device Package	SP1
Technology	Silicon Carbide Schottky
Voltage - Forward (Vf) (Max) @ If	1.8 V
Voltage - Peak Reverse (Max) [Max]	1.2 kV

Part	Current - Reverse Leakage @ Vr	Voltage - Peak Reverse (Max) [Max]	Current - Average Rectified (Io)	Supplier Device Package	Technology	Mounting Type	Diode Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Forward (Vf) (Max) @ If
Microsemi Corporation APTDC40H1201G	800 µA	1.2 kV	40 A	SP1	Silicon Carbide Schottky	Chassis Mount	Single Phase	SP1	-40 C	175 °C	1.8 V
Microsemi Corporation APTDC40H601G	800 µA	600 V	40 A	SP1	Silicon Carbide Schottky	Chassis Mount	Single Phase	SP1	-40 C	175 °C	1.8 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Silicon Carbide Schottky 1.2 kV Chassis Mount SP1

Technical documentation and resources

No documents available
