IRE-24/5-Q12NF-C

Active

Murata Power Solutions Inc.

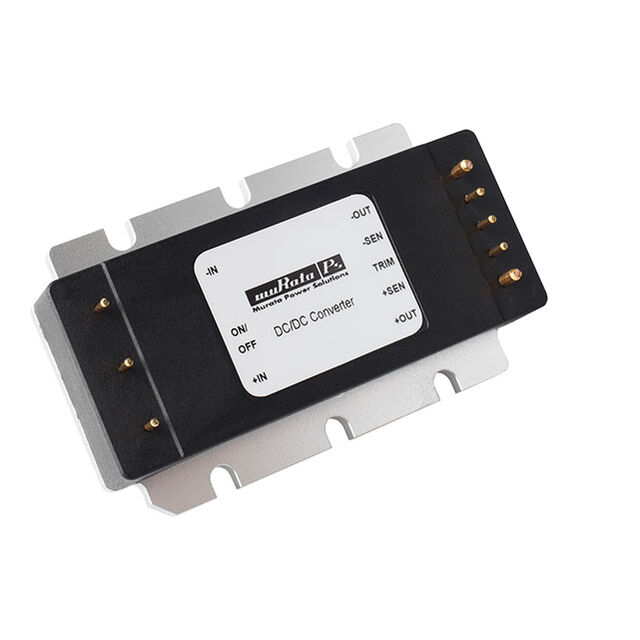

ISOLATED THROUGH HOLE DC/DC CONVERTER, RAILWAY, 4:1, 120 W, 1 OUTPUT, 24 V, 5 A

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, RAILWAY, 4:1, 120 W, 1 OUTPUT, 24 V, 5 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated DC/DC Converters - Through Hole 9V-36VIN 24VOUT 120W

Technical documentation and resources

Specification	IRE-24/5-Q12NF-C	IRE-24 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active Low, Enable	Active Low, Enable, Active High
Current - Output (Max) [Max]	5 A	5 A
Efficiency	92 %	92 %
Features	Remote On/Off, Adjustable Output, Remote Sense	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Eighth Brick	Eighth Brick
Power (Watts)	120 W	120 W
Size / Dimension	-	1.01 in
Size / Dimension	-	2.41 in
Size / Dimension	-	0.5 in
Size / Dimension [x]	61.2 mm	61.2 mm
Size / Dimension [x]	2.41 "	2.41 - 61.2 "
Size / Dimension [y]	36.8 mm	36.8 mm
Size / Dimension [y]	1.45 "	1.45 - 25.7 "
Size / Dimension [z]	12.7 mm	12.7 mm
Size / Dimension [z]	12.7 mm	12.7 mm
Supplier Device Package	Eighth Brick	Eighth Brick
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	36 V	36 V
Voltage - Input (Min) [Min]	9 V	9 V
Voltage - Output 1	24 V	24 V

Part	Mounting Type	Power (Watts)	Number of Outputs	Applications	Control Features	Efficiency	Voltage - Input (Max) [Max]	Features	Current - Output (Max) [Max]	Voltage - Output 1	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Input (Min) [Min]	Supplier Device Package	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]
Murata Power Solutions Inc. IRE-24/5-Q12NF-C	Through Hole	120 W	1	ITE (Commercial)	Active Low, Enable	92 %	36 V	Adjustable Output, Remote On/Off, Remote Sense	5 A	24 V	Eighth Brick	-40 °C	115 °C	Isolated Module	9 V	Eighth Brick	36.8 mm	1.45 "	12.7 mm	61.2 mm	12.7 mm	2.41 "
Murata Power Solutions Inc. IRE-24/5-Q12P-C	Through Hole	120 W	1	ITE (Commercial)	Active High, Enable	92 %	36 V	Adjustable Output, Remote On/Off, Remote Sense	5 A	24 V	Eighth Brick	-40 °C	115 °C	Isolated Module	9 V	Eighth Brick		25.7 mm	12.7 mm			61.2 mm	1.01 in	2.41 in	0.5 in
