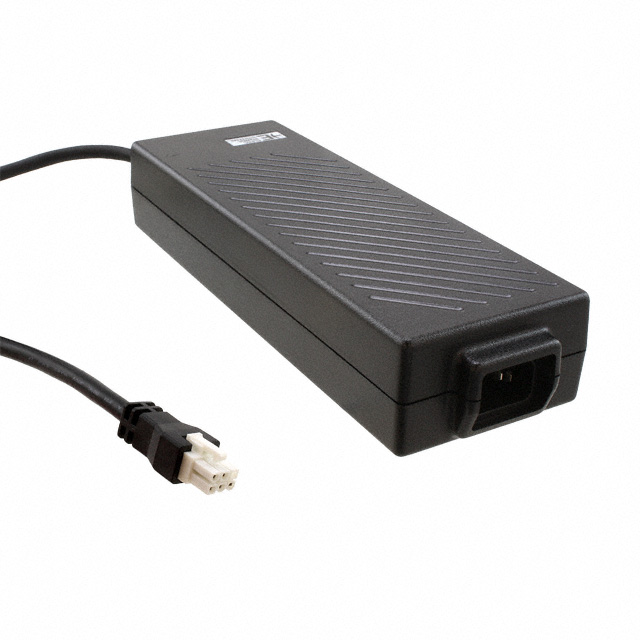

MWA180012A-13A

Active

Inventus Power

AC/DC DESKTOP ADAPTER 12V 180W

Search across all available documentation for this part.

Active

Inventus Power

AC/DC DESKTOP ADAPTER 12V 180W

Technical Specifications

Parameters and characteristics for this part

AC/DC DESKTOP ADAPTER 12V 180W

Part	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Form	Input Type	Input Connector	No Load Power Consumption	Power (Watts)	Voltage - Output	Applications	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Cord Length	Cord Length	Region Utilized	Efficiency	Weight	Weight	Output Connector
Inventus Power MWA180012A-13A	15 A	60 °C	0 °C	Desktop (Class I)	Cord	IEC 320-C14	500 mW	180 W	12 V	Medical	CB, CE, cTUVus	8.2 "	73 mm	208 mm	2.9 in	1.6 "	39 mm	1.22 m	48 in	International	Level V	952.5 g	2.1 lb	Rectangular, 6 Position

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 180 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
