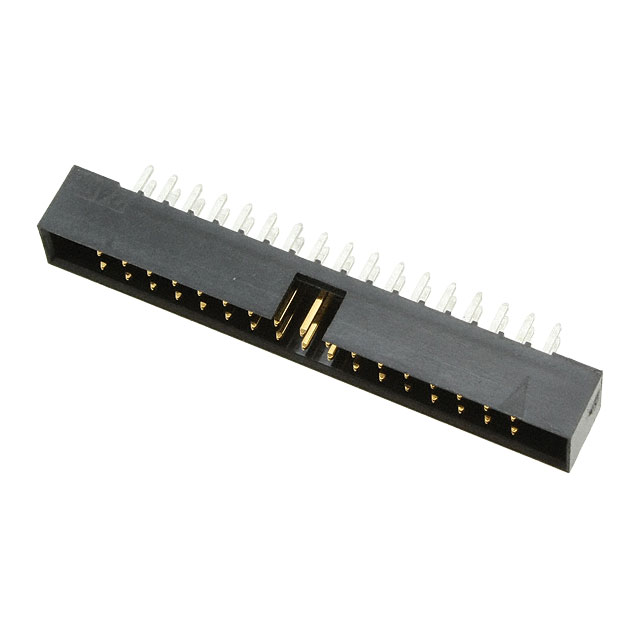

957234-6002-AR

Active

3M (TC)

CONN HEADER VERT 34POS 2MM

Search across all available documentation for this part.

Active

3M (TC)

CONN HEADER VERT 34POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	957234-6002-AR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Connector Type	Mounting Type	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Shape	Pitch - Mating [x]	Pitch - Mating [x]	Shrouding	Contact Type	Termination	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish - Post	Material Flammability Rating	Fastening Type	Features	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Number of Positions	Number of Rows	Contact Finish - Mating	Insulation Height [custom]	Insulation Height [custom]
3M (TC) 957234-6002-AR	1 çm	39.4 çin	Thermoplastic	Header	Through Hole	Flash	5.6 mm	0.22 in	Square	0.079 in	2 mm	Shrouded - 4 Wall	Male Pin	Solder	All	0.118 in	3 mm	-40 °C	105 ░C	Copper Alloy	Tin	UL94 V-0	Push-Pull	Keying Slot	0.079 in	2 mm	Black	34	2	Gold
3M (TC) 957234-5002-AR	1 çm	39.4 çin	Thermoplastic	Header	Through Hole Right Angle	Flash			Square	0.079 in	2 mm	Shrouded - 4 Wall	Male Pin	Solder	All	0.118 in	3 mm	-40 °C	105 ░C	Copper Alloy	Tin	UL94 V-0	Push-Pull	Keying Slot	0.079 in	2 mm	Black	34	2	Gold	5.51 mm	0.217 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	8000	$ 2.73

General part information

Connector Header Through Hole 34 position 0.079" (2.00mm)
