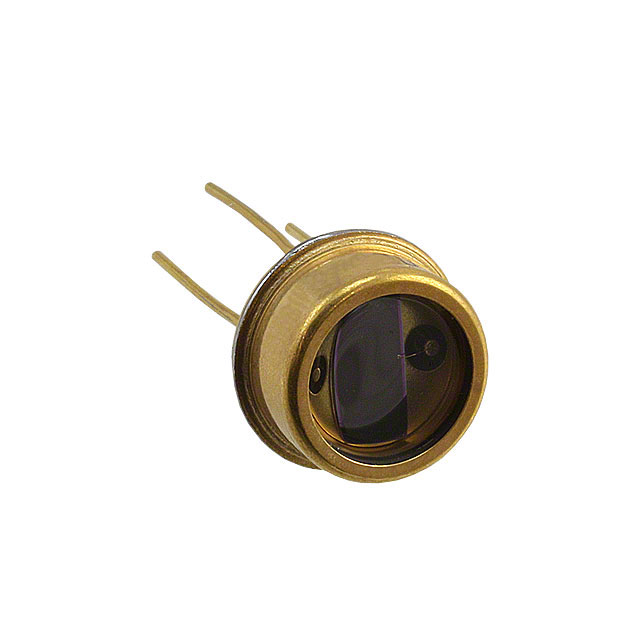

ODD-15W

Active

Opto Diode Corp

SENSOR PHOTODIODE 940NM TO5

Search across all available documentation for this part.

Active

Opto Diode Corp

SENSOR PHOTODIODE 940NM TO5

Technical Specifications

Parameters and characteristics commom to parts in this series

SENSOR PHOTODIODE 940NM TO5

Part	Response Time	Mounting Type	Color - Enhanced	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Dark (Typ)	Active Area	Responsivity @ nm	Wavelength	Operating Temperature [Max]	Operating Temperature [Min]	Spectral Range [Max] [x]	Spectral Range [Min] [x]
Opto Diode Corp ODD-15W	20 ns	Through Hole	Red	60 V	4 nA	15 mm²	0.4 A/W	940 nm	100 °C	-55 °C	1100 nm	400 nm
Opto Diode Corp ODD-15WB	20 ns	Through Hole	Blue	60 V	4 nA	15 mm²	0.28 A/W	940 nm	100 °C	-55 °C	1100 nm	400 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Photodiode 940nm 20ns
