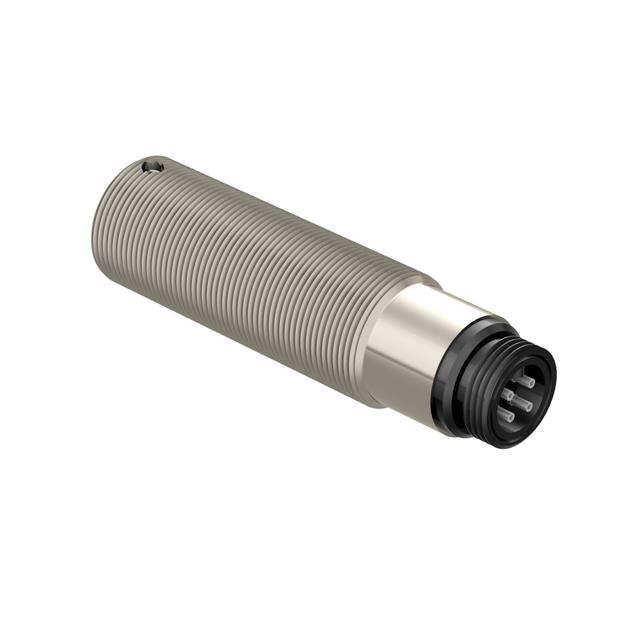

SMA30SELQD

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, SM30 SERIES, EMITTER, OPPOSED, 150 M, PLASTIC, 10 VDC TO 30 VDC

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, SM30 SERIES, EMITTER, OPPOSED, 150 M, PLASTIC, 10 VDC TO 30 VDC

Technical Specifications

Parameters and characteristics for this part

Part	Sensing Distance	Sensing Distance	Operating Temperature [Min]	Operating Temperature [Max]	Cable Length	Cable Length	Ingress Protection	Light Source	Sensing Method	Connection Method	Voltage - Supply [Min]	Voltage - Supply [Max]
BANNER ENGINEERING SMA30PEL	492.13 ft	150 m	-40 °C	70 °C	78.74 in	2 m	IP67 NEMA 6P	Infrared LED	Through-Beam	Cable	10 VDC 12 VAC	30 VDC 240 VAC
BANNER ENGINEERING SMA30PELC	492.13 ft	150 m	-40 °C	70 °C	78.74 in	2 m	IP67	Infrared	Through-Beam	Cable	10 VDC 12 VAC	30 VDC 240 VAC
BANNER ENGINEERING SMA30SELB W/30	492.13 ft	150 m	-40 °C	70 °C	78.74 in	2 m	IP67	Infrared	Through-Beam	Cable with Connector	10 VDC 12 VAC	30 VDC 240 VAC
BANNER ENGINEERING SMA30PELQD	492.13 ft	150 m	-40 °C	70 °C			IP67 NEMA 6P	Infrared LED	Through-Beam	Connector	10 VDC 12 VAC	30 VDC 240 VAC
BANNER ENGINEERING SMA30SELQD	492.13 ft	150 m	-40 °C	70 °C			IP67 NEMA 6P	Infrared LED	Through-Beam	Connector	10 VDC 12 VAC	30 VDC 240 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Through-Beam Optical Sensor 492.13' (150m)

Technical documentation and resources
