General part information

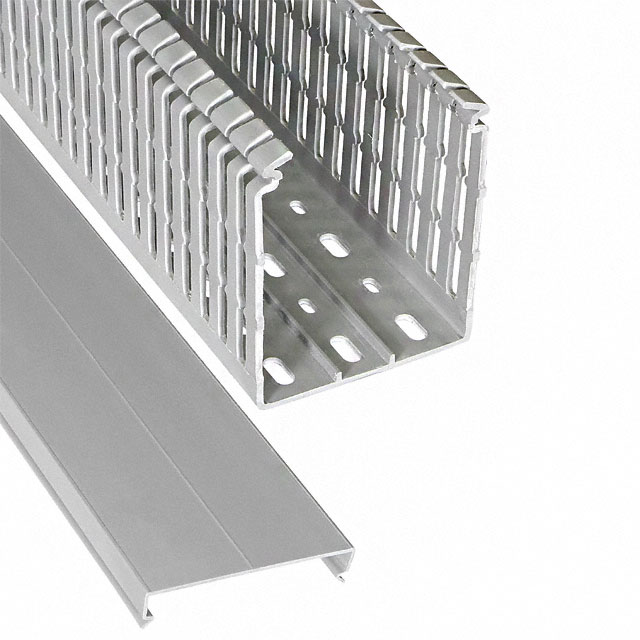

Wire Duct Gray Solid (Raceway), 2 Piece Rivet 6.56' (2.00m)
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 3240264 | CD 80 Series |
|---|---|---|
| Color | Gray | Gray, White |
| Features | Separate Snap in Lid (Included) | Separate Snap in Lid (Included) |
| Height [z] | 100 mm | 40 - 100 mm |
| Height [z] | 3.937 in | 1.575 - 3.937 in |
| Length [x] | 2 m | 2 m |
| Length [x] | 6.56 ft | 6.56 ft |
| Material | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Mounting Type | Rivet | Rivet |
| Width | 80 mm | 80 mm |
| Width [x] | 3.15 in | 3.15 in |
| Wire Duct Type | 2 Piece | 2 Piece |
| Wire Duct Type | Solid (Raceway) | Solid (Raceway) |
WIRE DUCT SOLID 2PC RIVET 6.56'
| Part | Color | Height [z] | Height [z] | Wire Duct Type | Wire Duct Type | Mounting Type | Width | Width [x] | Material | Features | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 3240335 | Gray | 1.575 in | 40 mm | 2 Piece | Solid (Raceway) | Rivet | 80 mm | 3.15 in | Poly-Vinyl Chloride (PVC) | Separate Snap in Lid (Included) | 2 m | 6.56 ft |
Phoenix Contact 3240634 | White | 2.362 in | 60 mm | 2 Piece | Solid (Raceway) | Rivet | 80 mm | 3.15 in | Poly-Vinyl Chloride (PVC) | Separate Snap in Lid (Included) | 2 m | 6.56 ft |
Phoenix Contact 3240264 | Gray | 3.937 in | 100 mm | 2 Piece | Solid (Raceway) | Rivet | 80 mm | 3.15 in | Poly-Vinyl Chloride (PVC) | Separate Snap in Lid (Included) | 2 m | 6.56 ft |
