Q-7004Z000M003M

Active

Amphenol Custom Cable

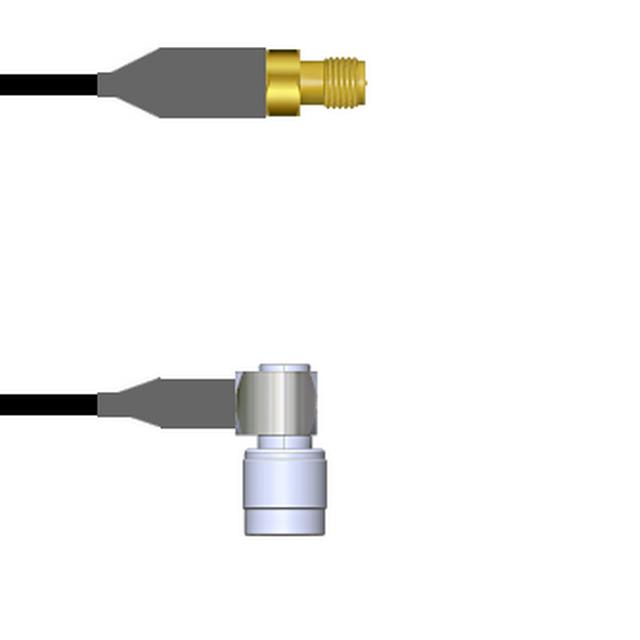

CBL ASSY RPSMA-TNC JACK-PLG 9.8'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY RPSMA-TNC JACK-PLG 9.8'

Technical Specifications

Parameters and characteristics for this part

CBL ASSY RPSMA-TNC JACK-PLG 9.8'

Part	1st Connector Mounting Type	Overall Impedance	2nd Connector Mounting Type	Features	1st Contact Gender	Color	Length	Length	Length	Connector Impedance	2nd Connector	1st Connector	Frequency - Max [Max]	2nd Contact Gender	Cable Type	Cable Impedance	Style
Amphenol Custom Cable Q-7004Z000M003M	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Shielded	Male	Black	3 m	118.1 in	9.8 '	50 Ohms	TNC Plug, Right Angle	RP-SMA Jack	6000 MHz	Male	LMR 240	50 Ohms	RP-SMA to TNC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial RP-SMA to TNC LMR 240 118.1" (3.0m) 9.8'

Technical documentation and resources

No documents available
