480-1"X36YD

Active

3M (TC)

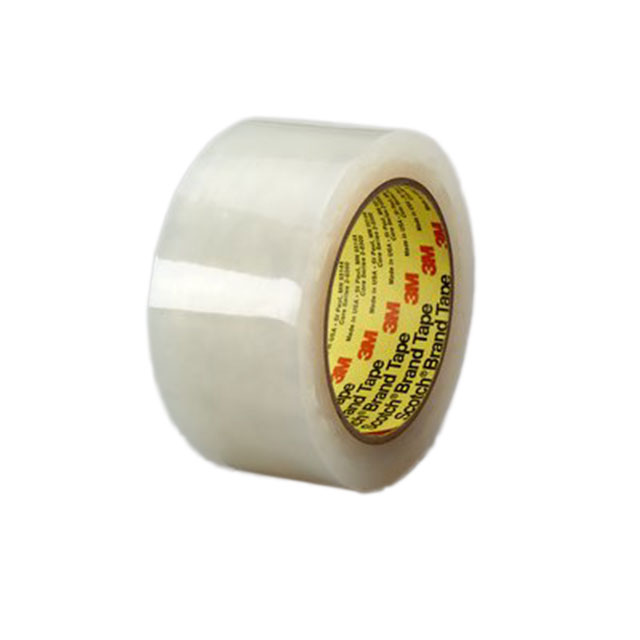

TAPE SPLICING CLEAR 1"X36YDS

Search across all available documentation for this part.

Active

3M (TC)

TAPE SPLICING CLEAR 1"X36YDS

Technical Specifications

Parameters and characteristics for this part

Specification	480-1"X36YD

Adhesive	Acrylic
Color	Clear
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Splicing
Temperature Range [Max]	77 °C, 170 °F
Temperature Range [Min]	20 °F, -7 °C
Thickness	0.13 mm
Thickness	5.1 mils
Thickness	0.0051 "
Thickness - Adhesive	0.0013 "
Thickness - Adhesive	1.3 mils
Thickness - Adhesive	0.033 mm
Thickness - Backing, Carrier	0.097 mm
Thickness - Backing, Carrier	3.8 mils
Thickness - Backing, Carrier	0.0038 in
Usage	Sealing, Splicing
Width [x]	25.4 mm
Width [x]	1 in

Part	Shelf Life Start	Temperature Range [Min]	Temperature Range [Max]	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Shelf Life	Color	Thickness	Thickness	Thickness	Length	Length	Length	Adhesive	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Width [x]	Width [x]	Tape Type	Usage	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Width [y]	Width [y]
3M (TC) 480-1"X36YD	Date of Manufacture	-7 °C 20 °F	77 °C 170 °F	0.097 mm	3.8 mils	0.0038 in	18 Months	Clear	0.13 mm	5.1 mils	0.0051 "	36 yd	32.9 m	108 ft	Acrylic	16 °C 60 °F	27 °C 80 °F	25.4 mm	1 in	Splicing	Sealing Splicing	0.0013 "	1.3 mils	0.033 mm
3M (TC) 480-2"X36YD	Date of Manufacture	-7 °C 20 °F	77 °C 170 °F	0.097 mm	3.8 mils	0.0038 in	18 Months	Clear	0.13 mm	5.1 mils	0.0051 "	36 yd	32.9 m	108 ft	Acrylic	16 °C 60 °F	27 °C 80 °F			Splicing	Sealing Splicing	0.0013 "	1.3 mils	0.033 mm	2 "	50.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	36	$ 40.44

General part information

Splicing Tape Acrylic Adhesive Clear 1.00" (25.40mm) X 108' (32.9m) 36 yds
