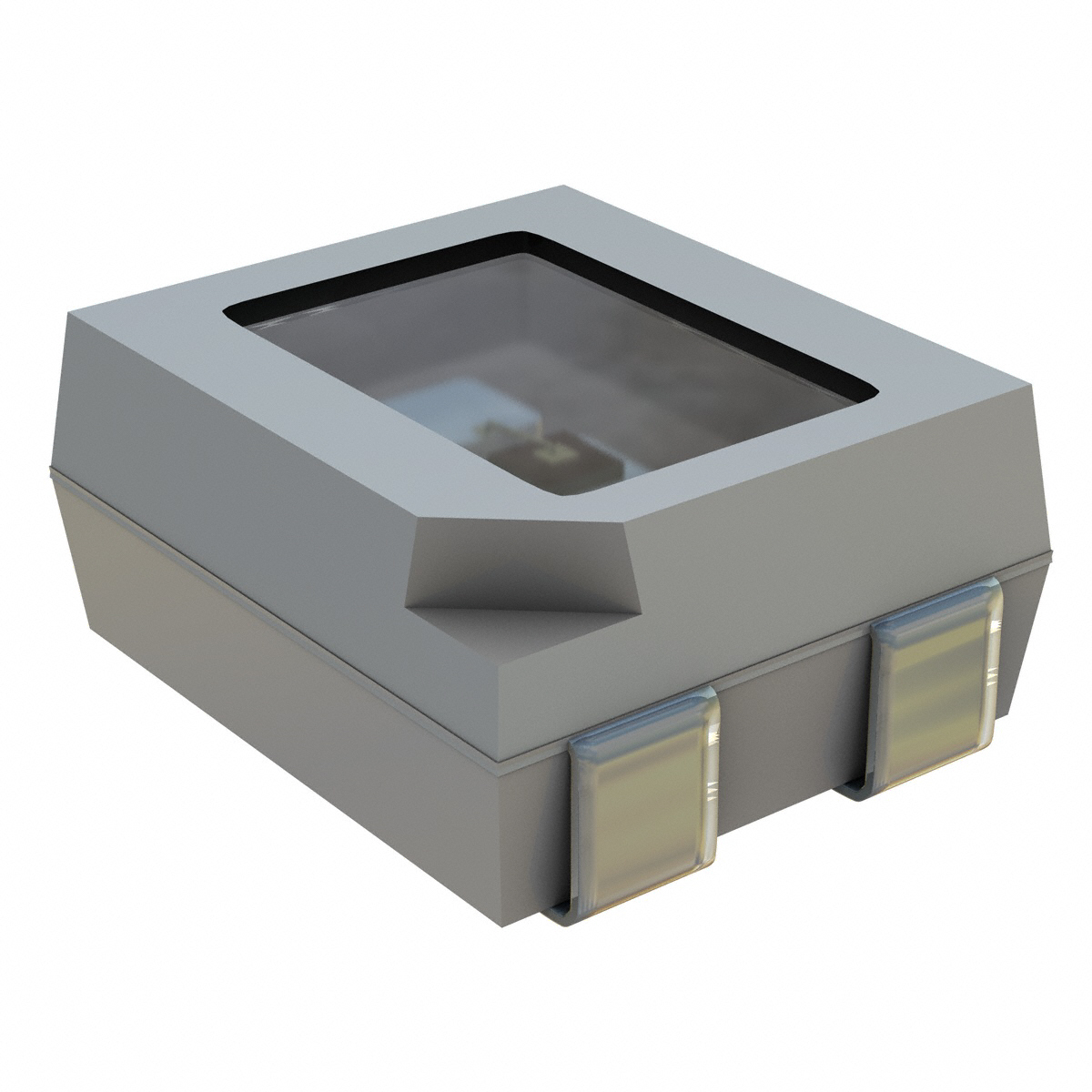

AA3020AQBC/D

Active

Kingbright

LED BLUE CLEAR SMD

Search across all available documentation for this part.

Active

Kingbright

LED BLUE CLEAR SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

LED RED CLEAR SMD

Part	Current - Test	Lens Transparency	Configuration	Color	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Millicandela Rating	Package / Case	Wavelength - Peak	Lens Color	Lens Style	Height (Max) [Max] [z]	Voltage - Forward (Vf) (Typ)	Lens Size [y]	Lens Size [x]	Wavelength - Dominant	Mounting Type	Viewing Angle [custom]
Kingbright AA3020ASURCK	20 mA	Clear	Standard	Red	SMD	2 mm	2.7 mm	200 mcd	2-SMD, J-Lead	650 nm	Colorless	Rectangle with Flat Top	1.65 mm	1.95 V	1.4 mm	2 mm	630 nm	Surface Mount	90 °
Kingbright AA3020AYC	20 mA	Clear	Standard	Yellow	SMD	2 mm	2.7 mm	15 mcd	2-SMD, J-Lead	590 nm	Colorless	Rectangle with Flat Top	1.65 mm	2.1 V	1.4 mm	2 mm	588 nm	Surface Mount	90 °
Kingbright AA3020APBC/A	20 mA	Clear	Standard	Blue	SMD	2 mm	2.7 mm	60 mcd	2-SMD, J-Lead	468 nm	Colorless	Rectangle with Flat Top	1.65 mm	3.2 V	1.4 mm	2 mm	470 nm	Surface Mount	90 °
Kingbright AA3020AQBC/D	20 mA	Clear	Standard	Blue	SMD	2 mm	2.7 mm	160 mcd	2-SMD, J-Lead	468 nm	Colorless	Rectangle with Flat Top	1.65 mm	3.3 V	1.4 mm	2 mm	470 nm	Surface Mount	90 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Blue 470nm LED Indication - Discrete 3.3V 2-SMD, J-Lead
